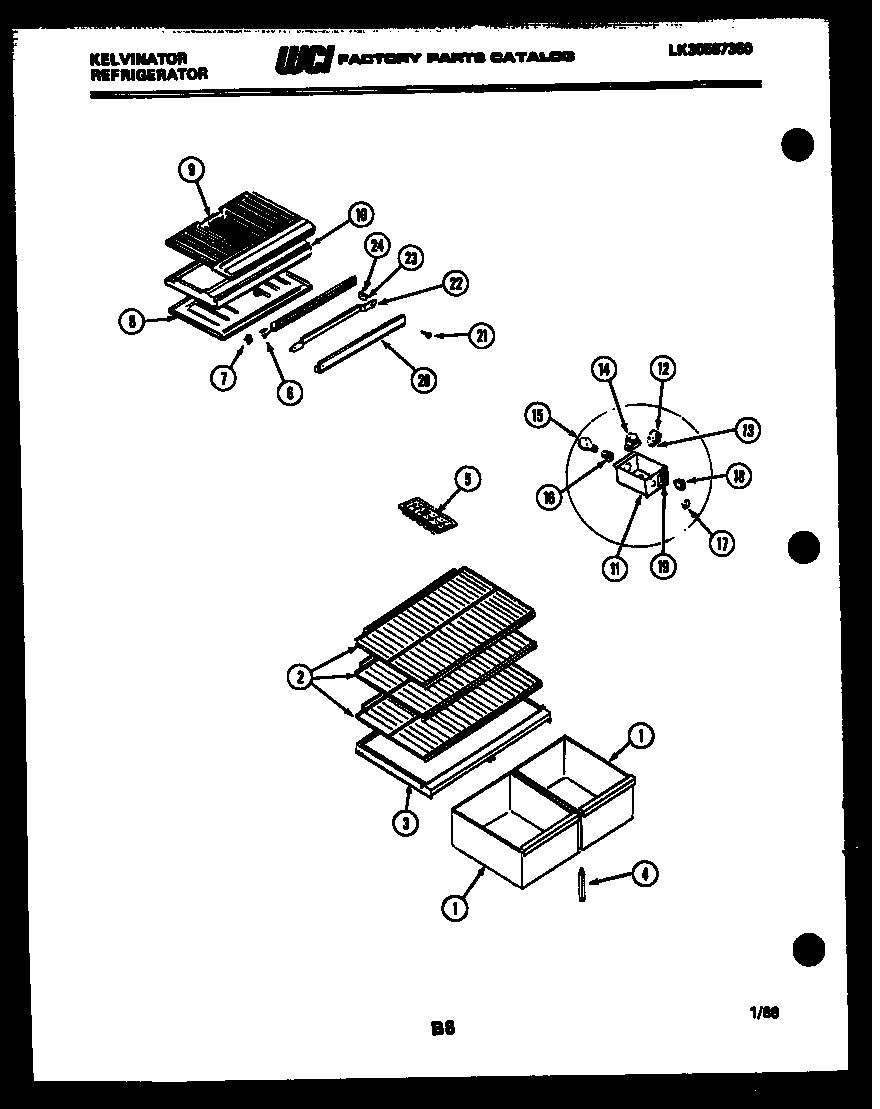

TSK140EN1F 04 – SHELVES AND SUPPORTS

Products

Position	Product
*23825	HARNESS, WIRING
1	WCI 3016706
2	WCI G172172-01
3	COVER
4	SUPPORT, CRISPER COVER
5	215667501 Frigidaire Refrigerator Ice Tray Primary
6	WCI G187921
7	5309918806 Frigidaire Refrigerator Light Switch Door
8A	SCREW (5)
8	TOP-REFRIGERATOR
9	DIVIDER-COMPARTMENT
10	BOTTOM ( FREEZER )
11A	5304455650 Frigidaire Refrigerator Screw
11	WCI G176722-03
12	CONTROL-TEMP
12A	WCI G107080
13	TUBE
14A	5304455649 Frigidaire Refrigerator Screw
14	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
15	316538904 Frigidaire Oven Lamp Light
16	SOCKET LIGHT
17	KNOB
18	SWITCH SLIDE
19	LABEL
20	WCI G174520-10
21	SCREW, BRACKET MOUNTING (4)
22	CLAMP, MULLION MOUNTING
23	WASHER (2)
24	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
