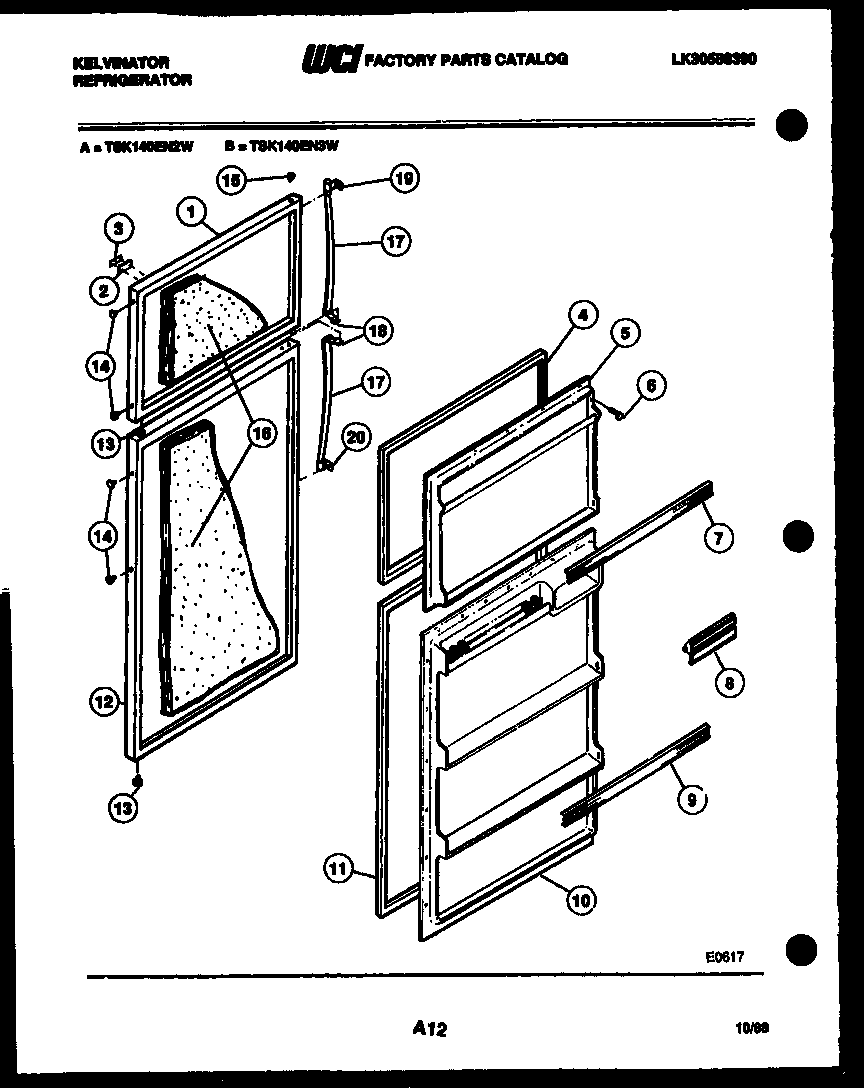

TSK140EN2V 02 – DOOR PARTS

Products

Position	Product
*52285	WCI G185566
1	WCI 3916199
2	NAMEPLATE FRAME
2A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
3	LABEL-NAMEPLATE
4	GASKET-FREEZER
5	INNER PANEL-FRZR
6	5304455651 Frigidaire Refrigerator Screw
7	DOOR RACK-FRZR
8	WCI G161766-51
9	WCI 3016705
10	INNER PANEL-REFR
11	GASKET-REFRIGERATOR
12	REFRIGERATOR DOOR-AVOCADO
13	BEARING, HINGE (3)
14	WCI G162997-08
15	WCI G169332-08
16	WCI G89643
17	WCI 3201377
17A	TRIM INSERT-GRIP (2) (NON-ILLUSTRATED)
18	END-HANDLE (2)
19	WCI G189452-01
20	WCI G189451-01
