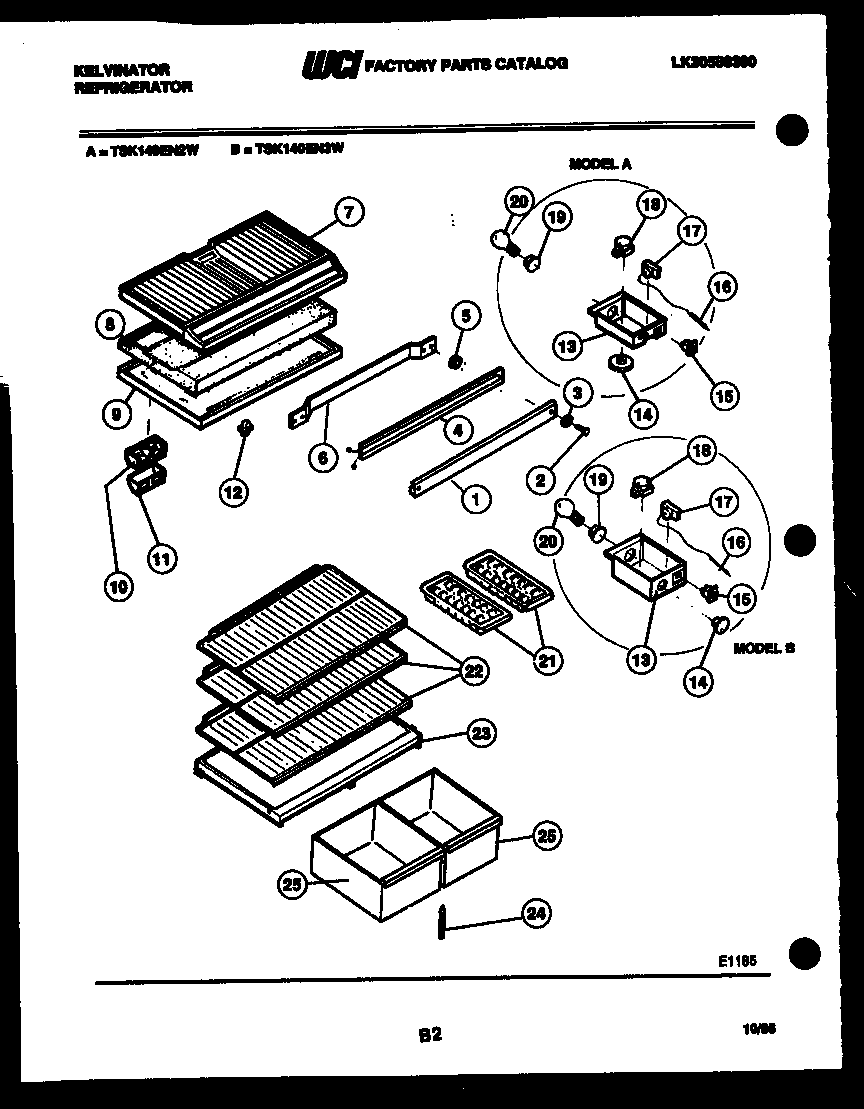

TSK140EN3T 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 3916132
2	SCREW, BRACKET MOUNTING (4)
3	WASHER (2)
4	WCI G187921
5	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
6	CLAMP, MULLION MOUNTING
7	BOTTOM ( FREEZER )
8	DIVIDER-COMPARTMENT
8A	HARNESS, WIRING
9A	SCREW (5)
9	TOP-REFRIGERATOR
10	DEFLECTOR AIR
11	WCI G162178
12	5309918806 Frigidaire Refrigerator Light Switch Door
13B	WCI G183060
13C	5304455650 Frigidaire Refrigerator Screw
13A	WCI G178294-01
13	WCI G174655-11
14	KNOB CONTROL
15	SWITCH SLIDE
16	TUBE
17	CONTROL-COLD
17A	WCI G107080
18A	5304455649 Frigidaire Refrigerator Screw
18	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
19	SOCKET LIGHT
20	316538904 Frigidaire Oven Lamp Light
21	215667501 Frigidaire Refrigerator Ice Tray Primary
22	WCI G172172-01
23	COVER
24	SUPPORT, CRISPER COVER
25	WCI 3016706
