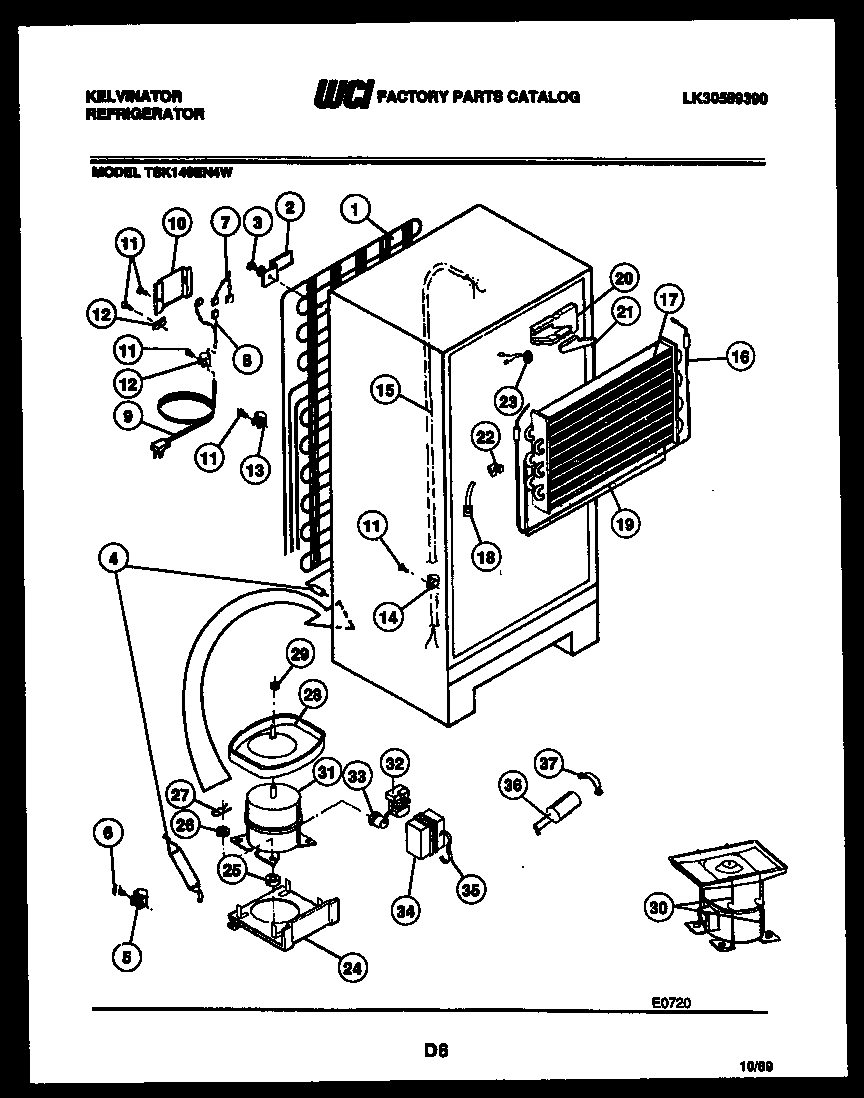

TSK140EN4D 05 – SYSTEM AND AUTOMATIC DEFROST PARTSadmin2025-04-26T09:46:59+00:00TSK140EN4D 05 – SYSTEM AND AUTOMATIC DEFROST PARTS
Products
| Position | Product |
|---|
| *88868 | HOT TUBE REPAIR KIT (NON-ILLUSTRATED) |
| 1 | WCI G178225 |
| 2A | WASHER |
| 2 | BRACKET-CONDENSER MOUNTING (4) |
| 3 | 5308000039 Frigidaire Refrigerator Screw |
| 4 | 5303305677 Frigidaire Replacement Filter Dryer Filters |
| 5 | WCI 3201679 |
| 6 | 218843801 Frigidaire Refrigerator Screw |
| 7 | HARNESS, WIRING |
| 8 | HARNESS-COMPRESSOR |
| 9 | CORD, SERVICE |
| 10 | WCI G183584 |
| 11 | 5304455651 Frigidaire Refrigerator Screw |
| 12 | 5303001199 Frigidaire Refrigerator Wiring Harness Clamp |
| 13 | 240396801 Frigidaire Refrigerator Tube Clamp |
| 15 | EXCHANGER-HEAT |
| 16 | WCI G162432-02 |
| 17 | EVAPORATOR |
| 18 | 5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap |
| 19 | INSULATOR |
| 20 | BLOCK, EVAPORATOR, RH |
| 21 | PLUG, EVAPORATOR INSULATION BLOCK, R H |
| 22 | BLOCK, LEFT SIDE |
| 23 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 24 | WCI G162822 |
| 25 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 26 | WASHER, COMPRESSOR MOUNTING (4) |
| 27 | CLIP, COMPRESSOR MOUNTING (4) |
| 28A | 5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction |
| 28 | DEFROST PAN & NUT |
| 29 | NUT, LOCK |
| 30 | PAN RETAINER KIT-SERVICE |
| 31 | WCI 3916004 |
| 32 | WCI G182225-18 |
| 33 | WCI 3001713 |
| 33A | WCI 3017762 |
| 35 | 5303006412 Frigidaire Refrigerator Cover Mounting Strap |
| 36 | WCI 3018427 |
| 37 | STRAP CAPACITOR |
