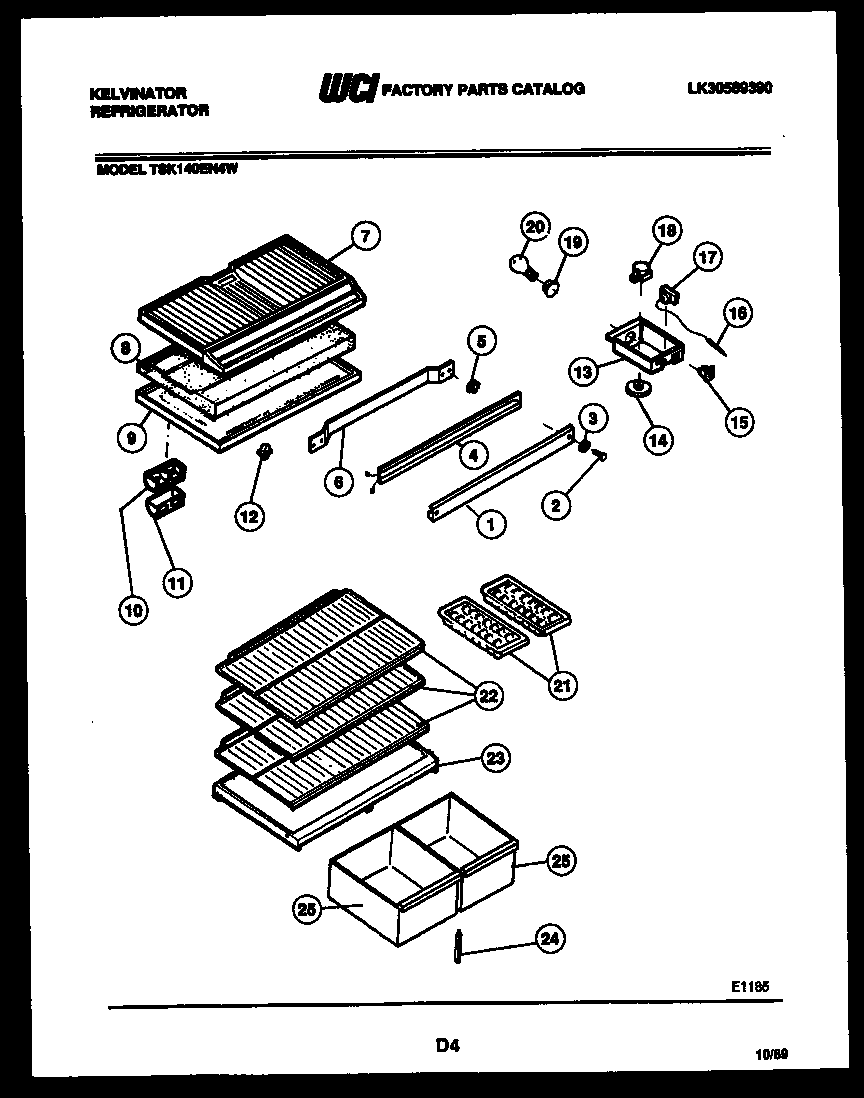

TSK140EN4T 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 3916132
2	SCREW, BRACKET MOUNTING (4)
3	WASHER (2)
4	WCI G187921
5	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
6	CLAMP, MULLION MOUNTING
7	BOTTOM ( FREEZER )
8	DIVIDER-COMPARTMENT
8A	HARNESS, WIRING
9	TOP-REFRIGERATOR
9A	SCREW (5)
10	DEFLECTOR AIR
11	WCI G162178
12	5309918806 Frigidaire Refrigerator Light Switch Door
13	WCI G176722-03
13A	LABEL
13C	5304455650 Frigidaire Refrigerator Screw
13B	PLUG BTN (NON-ILLUSTRATED)
14	KNOB
15	SWITCH SLIDE
16	TUBE
17A	WCI G107080
17	CONTROL-COLD
18	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
18A	5304455649 Frigidaire Refrigerator Screw
19	SOCKET LIGHT
20	316538904 Frigidaire Oven Lamp Light
21	215667501 Frigidaire Refrigerator Ice Tray Primary
22	WCI G172172-01
23	COVER
24	SUPPORT-ADJ CRISPER COVER
25	WCI 3016706
