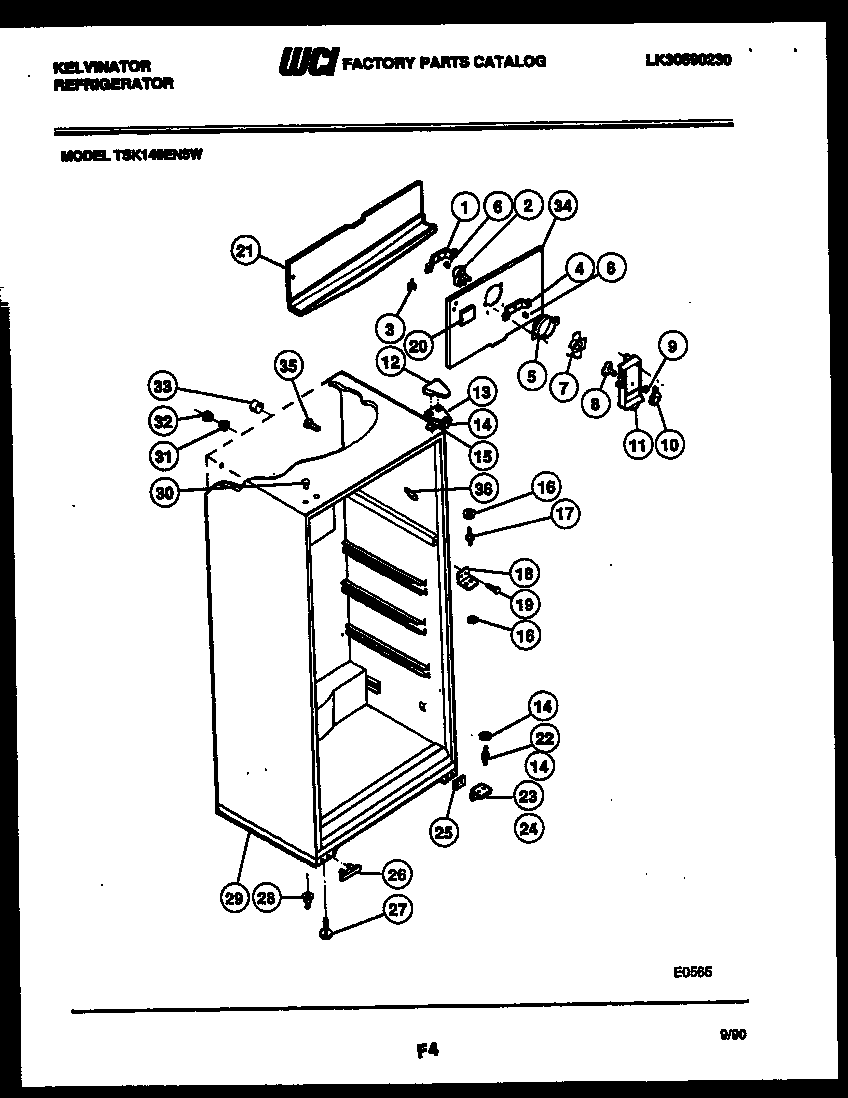

TSK140EN5D 03 – CABINET PARTS

Products

Position	Product
*14905	BUTTON, LINER
1	WCI G185303
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI G164571
4	WCI G185302
5	RING, FAN ORIFICE
5A	5304455651 Frigidaire Refrigerator Screw
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	DAMPER FAN COVER
9	NUT, DAMPER MOUNTING
10	WCI 5308000081
11	SCREW, HANDLE MOUNTING (2)
12	COVER, TOP HINGE, ALMOND
13B	TAPPING PLATE (2)
13	BRACKET, TOP HINGE
13A	241710601 Frigidaire Refrigerator Screw
14	WCI G103903
15	WCI G183861
16	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
17	WCI G142220
18	BRACKET, HINGE CENTER
19	SCREW, BRACKET MOUNTING (4)
20	BUTTON DECORATIVE PLUG
21	TROUGH-DRAIN
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	BRACKET, HINGE, LOWER
25	SHIM, HINGE
26	WCI G166912
27	LEG-LEVELING (2)
27A	NUT, ANCHOR (2)
28	CLIP (4)
29	BASE-CABINET
30	WCI G174747-11
31	WCI G174733
32	WCI G174734
33	TUBE, INSULATION (2)
34A	5304455650 Frigidaire Refrigerator Screw
34B	NUT, ORIFICE (2)
34	COVER-COIL
34C	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
35	WCI G163669
36	TRIM CORNER-ALMOND
