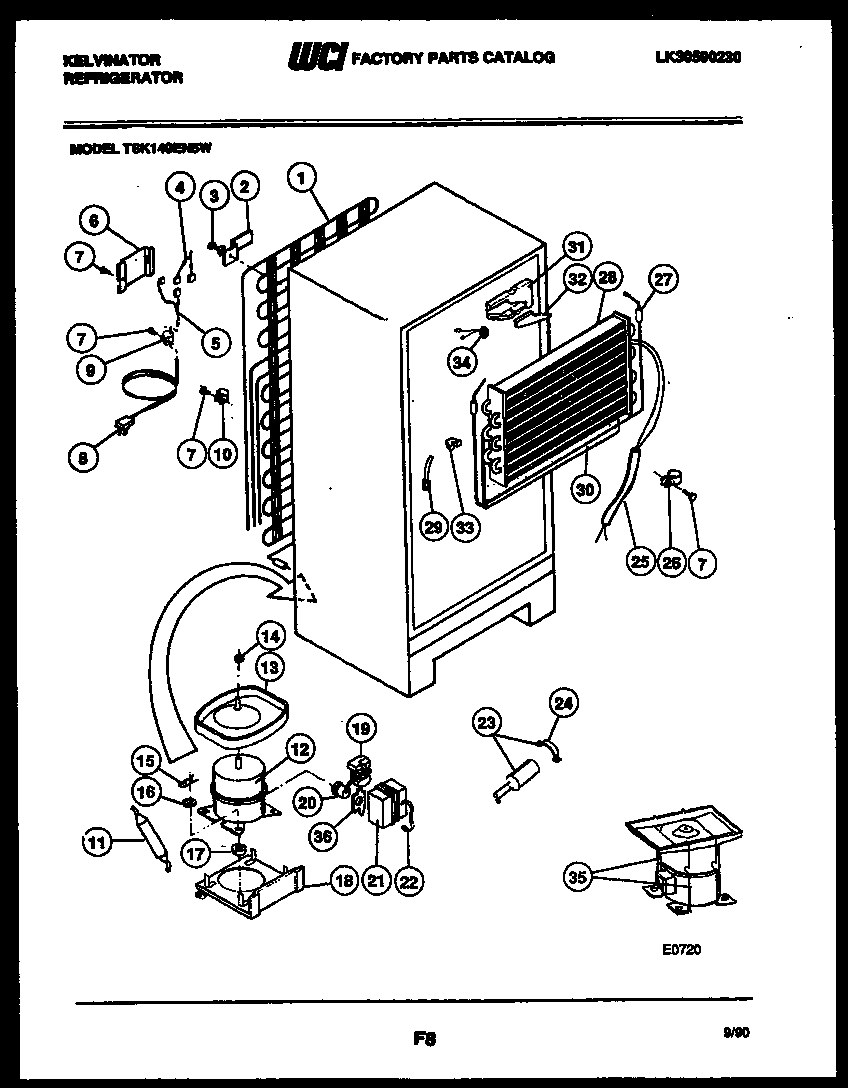

TSK140EN5D 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

TSK140EN5D 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

TSK140EN5D 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI G178225
2BRACKET-CONDENSER MOUNTING (4)
35308000039 Frigidaire Refrigerator Screw
3AWASHER
4HARNESS, WIRING
5HARNESS-COMPRESSOR
6WCI G183584
75304455651 Frigidaire Refrigerator Screw
8CORD, SERVICE
95303001199 Frigidaire Refrigerator Wiring Harness Clamp
10AWCI 3201679
10240396801 Frigidaire Refrigerator Tube Clamp
10B218843801 Frigidaire Refrigerator Screw
115303305677 Frigidaire Replacement Filter Dryer Filters
12COMPRESSOR W/ ELEC
13DEFROST PAN
13ADEFROST PAN & NUT
14NUT, LOCK
15CLIP, COMPRESSOR MOUNTING (4)
16WASHER, COMPRESSOR MOUNTING (4)
17218513300 Frigidaire Refrigerator Compressor Mount Grommet
18WCI G162822
19WCI G182225-18
20WCI 3202863
21WCI 5303209254
22WCI 5303211232
23WCI 5303018427
24STRAP CAPACITOR
25EXCHANGER-HEAT
27WCI G162432-02
28EVAPORATOR
295308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
30INSULATOR
31BLOCK, EVAPORATOR, RH
32PLUG, EVAPORATOR INSULATION BLOCK, R H
33BLOCK, LEFT SIDE
345303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
35A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
35PAN RETAINER KIT-SERVICE
35BHOT TUBE REPAIR KIT (NON-ILLUSTRATED)
36WCI 3202891
