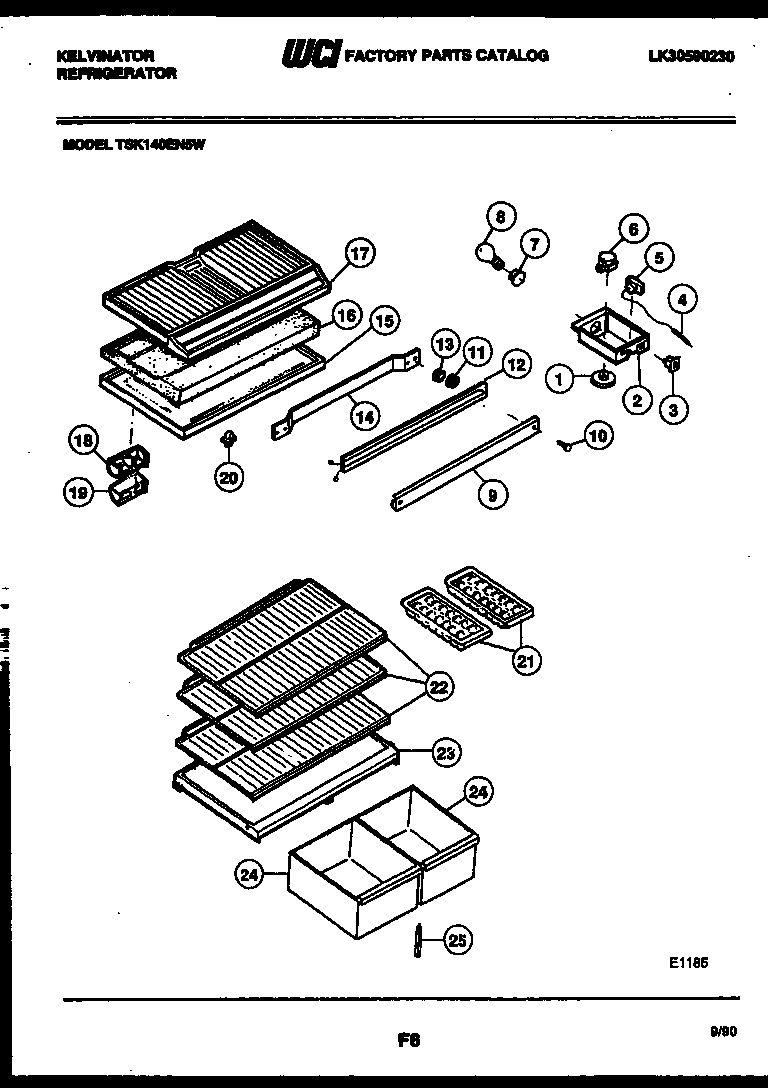

TSK140EN5T 04 – SHELVES AND SUPPORTS

TSK140EN5T 04 – SHELVES AND SUPPORTS

Written by

in

TSK140EN5T 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1KNOB
2ALABEL
2BPLUG BTN (NON-ILLUSTRATED)
2WCI 5317672203
2C5304455650 Frigidaire Refrigerator Screw
3SWITCH SLIDE
4TUBE
5CONTROL-COLD
5AWCI G107080
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
6A5304455649 Frigidaire Refrigerator Screw
7SOCKET LIGHT
8316538904 Frigidaire Oven Lamp Light
9WCI 3916132
10SCREW, BRACKET MOUNTING (4)
11WASHER (2)
12WCI G187921
13SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
14CLAMP, MULLION MOUNTING
15TOP-REFRIGERATOR
15ASCREW (5)
16AHARNESS, WIRING
16DIVIDER-COMPARTMENT
17BOTTOM ( FREEZER )
18DEFLECTOR AIR
19WCI G162178
205309918806 Frigidaire Refrigerator Light Switch Door
21215667501 Frigidaire Refrigerator Ice Tray Primary
22WCI G172172-01
23COVER
24WCI 3016706
25SUPPORT-CRISPER CVR, ADJUSTABLE
