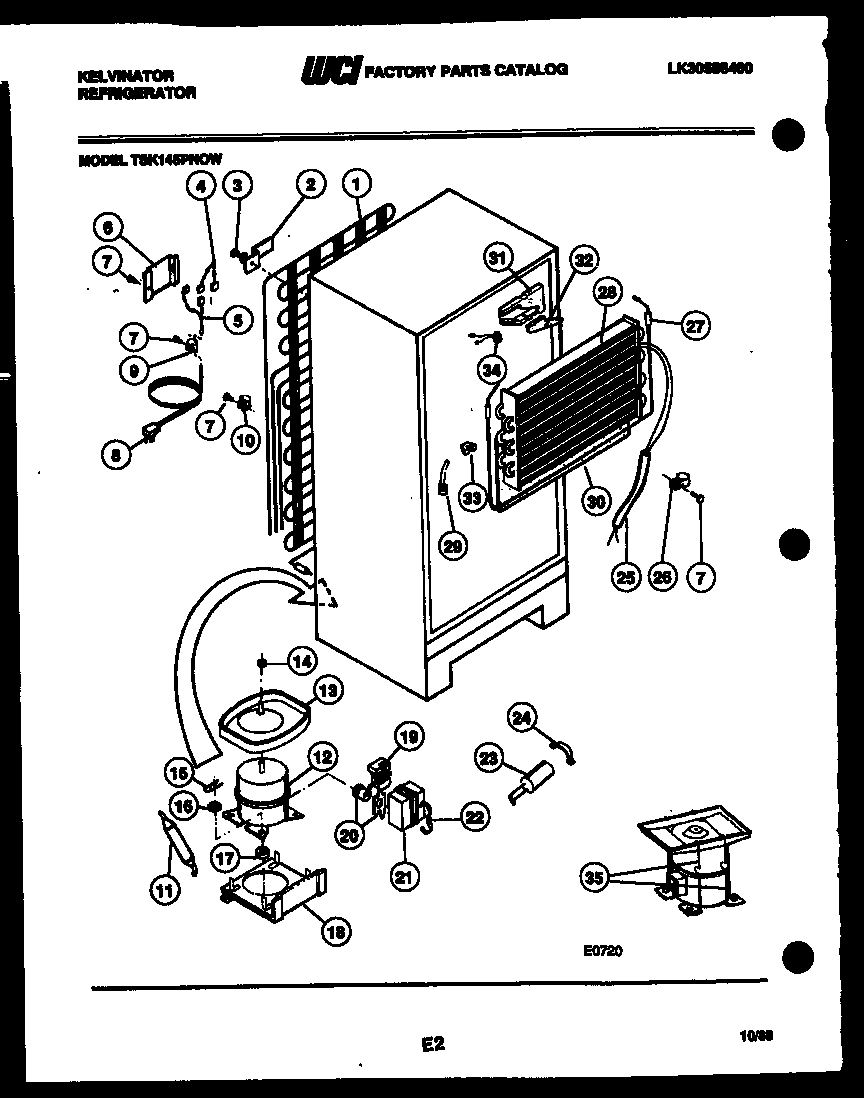

TSK145PN0D 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

TSK145PN0D 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

TSK145PN0D 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*55340HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
*553395303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
1WCI G178225
2BRACKET-CONDENSER MOUNTING (4)
35308000039 Frigidaire Refrigerator Screw
4HARNESS, WIRING
5HARNESS-COMPRESSOR
6WCI G183584
75304455651 Frigidaire Refrigerator Screw
8CORD, SERVICE
95303001199 Frigidaire Refrigerator Wiring Harness Clamp
10CLAMP-CABLE
115303305677 Frigidaire Replacement Filter Dryer Filters
12WCI 3916004
13DEFROST PAN & NUT
14NUT, LOCK
15CLIP, COMPRESSOR MOUNTING (4)
16WASHER, COMPRESSOR MOUNTING (4)
17218513300 Frigidaire Refrigerator Compressor Mount Grommet
18WCI G162822
19WCI G182225-18
20WCI 3201680
225303006412 Frigidaire Refrigerator Cover Mounting Strap
23WCI 3018427
24STRAP CAPACITOR
25EXCHANGER-HEAT
26240396801 Frigidaire Refrigerator Tube Clamp
27WCI G162432-02
28EVAPORATOR
295308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
30INSULATOR
31BLOCK, EVAPORATOR, RH
32PLUG, EVAPORATOR INSULATION BLOCK, R H
33BLOCK, LEFT SIDE
345303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
35PAN RETAINER KIT-SERVICE
