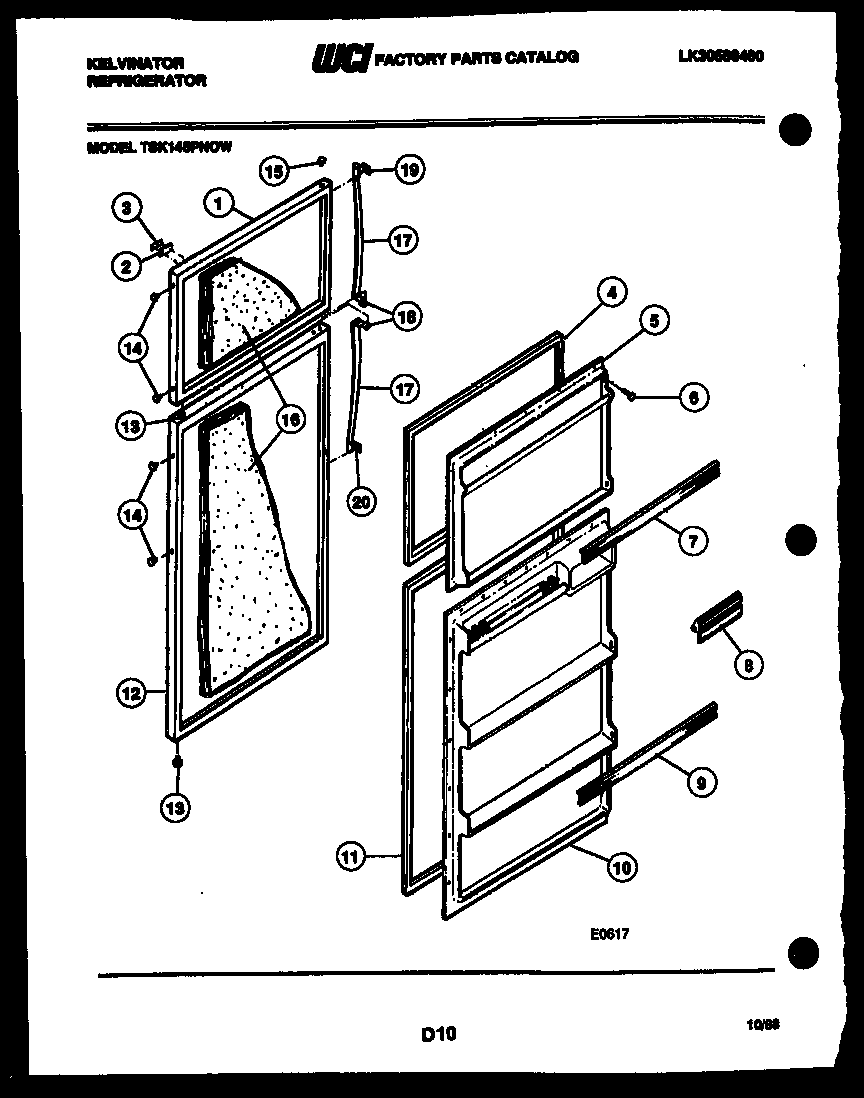

TSK145PN0F 02 – DOOR PARTS

Products

Position	Product
*55238	WCI G185566
1	WCI 3916312
2	NAMEPLATE FRAME
2A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
3	LABEL-NAMEPLATE
4	GASKET-FREEZER
5	WCI G186692-01
6	5304455651 Frigidaire Refrigerator Screw
7	DOOR RACK-REFRIGERATOR
8	DOOR, DAIRY
9	DOOR RACK (2)
10	WCI G186648-01
11	GASKET-REFRIGERATOR
12	WCI 3916317
13	BEARING, HINGE (3)
14	WCI G162977-10
15	WCI G169332-10
16	WCI G89643
17A	TRIM INSERT-GRIP (2) (NON-ILLUSTRATED)
17	WCI 3201377
18	END-HANDLE (2)
19	WCI G189452-01
20	WCI G189451-01
