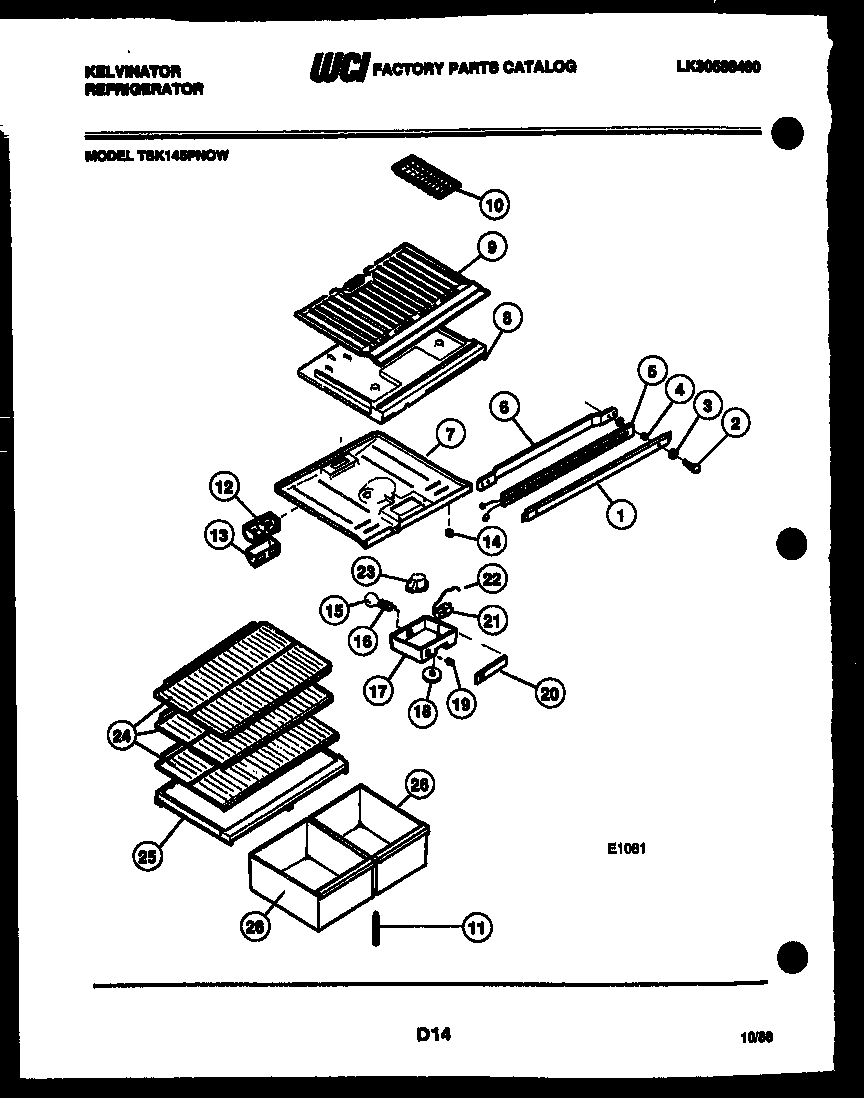

TSK145PN0F 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 3916133
2	SCREW, BRACKET MOUNTING (4)
3	WASHER (2)
4	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
5	WCI G187921
6	CLAMP, MULLION MOUNTING
7A	SCREW (5)
7	TOP-REFRIGERATOR
8	DIVIDER-COMPARTMENT
9	BOTTOM ( FREEZER )
10	215667501 Frigidaire Refrigerator Ice Tray Primary
11	SUPPORT, CRISPER COVER
12	DEFLECTOR AIR
13	WCI G162178
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16	SOCKET LIGHT
17A	5304455650 Frigidaire Refrigerator Screw
17	WCI G176722-03
18	KNOB
19	SWITCH SLIDE
20	LABEL
21A	WCI G107080
21	CONTROL-COLD
22	TUBE
23A	5304455649 Frigidaire Refrigerator Screw
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24	WCI G172172-01
25	COVER
26	WCI 3016706
