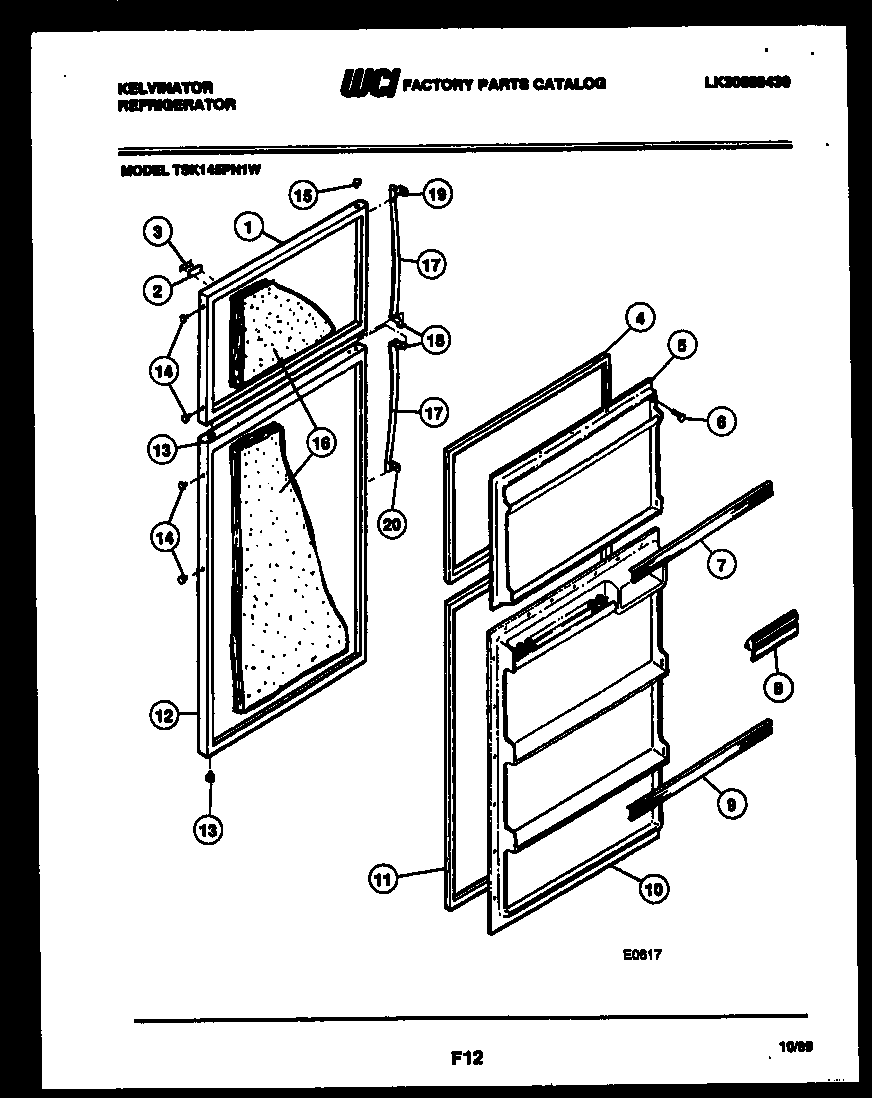

TSK145PN1D 02 – DOOR PARTS

Products

Position	Product
*91687	WCI G185566
1	WCI 3916313
2	NAMEPLATE FRAME
2A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
3	LABEL-NAMEPLATE
4	GASKET-FREEZER
5	WCI G186692-01
6	5304455651 Frigidaire Refrigerator Screw
7	RACK-DOOR (2)
8	DOOR, DAIRY
9	WCI 3001315
10	WCI G186648-01
11	GASKET-REFRIGERATOR
12	WCI 3916318
13	BEARING, HINGE (3)
14	WCI G162977-11
15	WCI G169332-11
16	WCI G89643
17	WCI 3201377
17A	TRIM INSERT-GRIP (2) (NON-ILLUSTRATED)
18	END-HANDLE (2)
19	WCI G189452-01
20	WCI G189451-01
