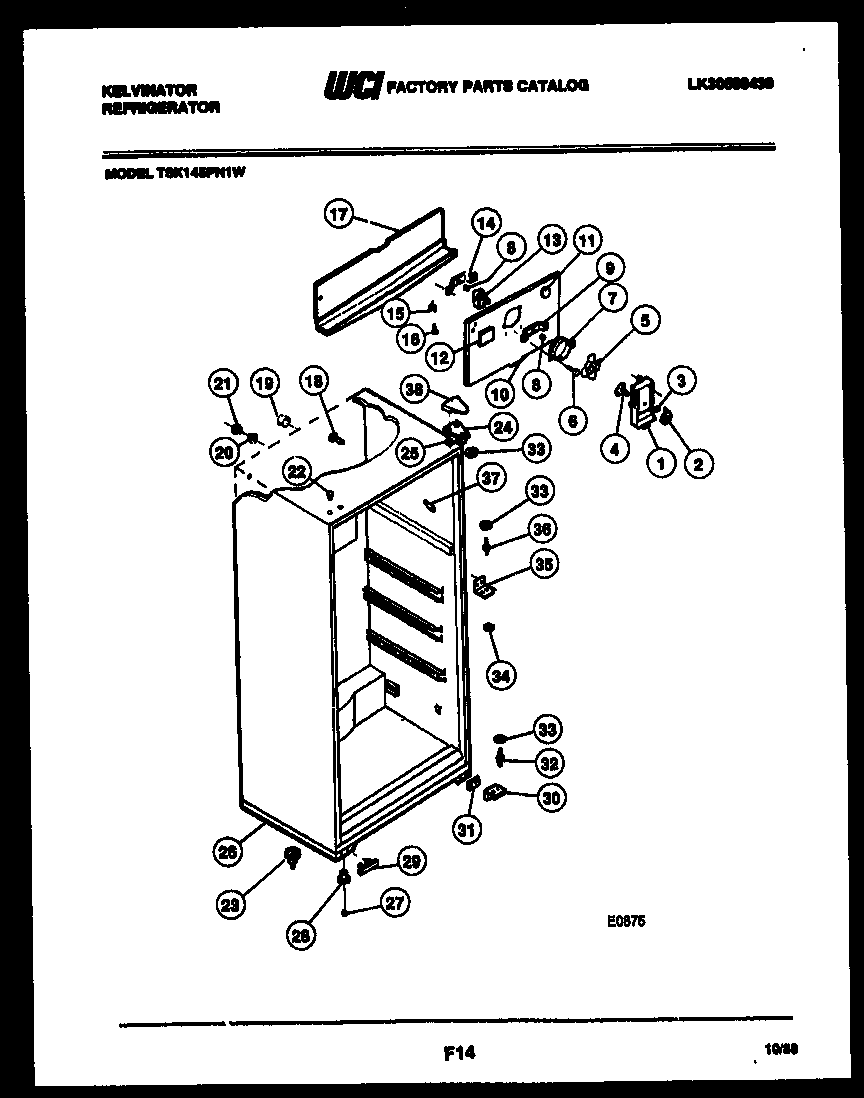

TSK145PN1D 03 – CABINET PARTS

Products

Position	Product
*91782	BUTTON, LINER
1	SCREW, HANDLE MOUNTING (2)
2	KNOB-DAMPER
3	NUT, DAMPER MOUNTING
4	DAMPER FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING, FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 3205118
10B	NUT, ORIFICE (2)
10	COVER-COIL
10A	5304455650 Frigidaire Refrigerator Screw
11	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12	BUTTON DECORATIVE PLUG
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI 3205119
15	WCI G164571
16	5304455651 Frigidaire Refrigerator Screw
17	TROUGH-DRAIN
18	WCI G163669
19	TUBE, INSULATION (2)
20	WCI G174733
21	WCI G174734
22	WCI G174747-11
23	CLIP (4)
24A	TAPPING PLATE (2)
24	BRACKET, TOP HINGE
24B	241710601 Frigidaire Refrigerator Screw
25	WCI G183861
26	BASE-CABINET
27	LEG-LEVELING (2)
28	NUT, ANCHOR (2)
29	WCI G166912
30B	TAPPING, PLATE (2)
30	BRACKET, HINGE, LOWER
31	SHIM, HINGE
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	WCI G103903
34	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
35A	SCREW, BRACKET MOUNTING (4)
35	BRACKET, HINGE CENTER
36	WCI G142220
37	TRIM CORNER-ALMOND
38	COVER, TOP HINGE, ALMOND
