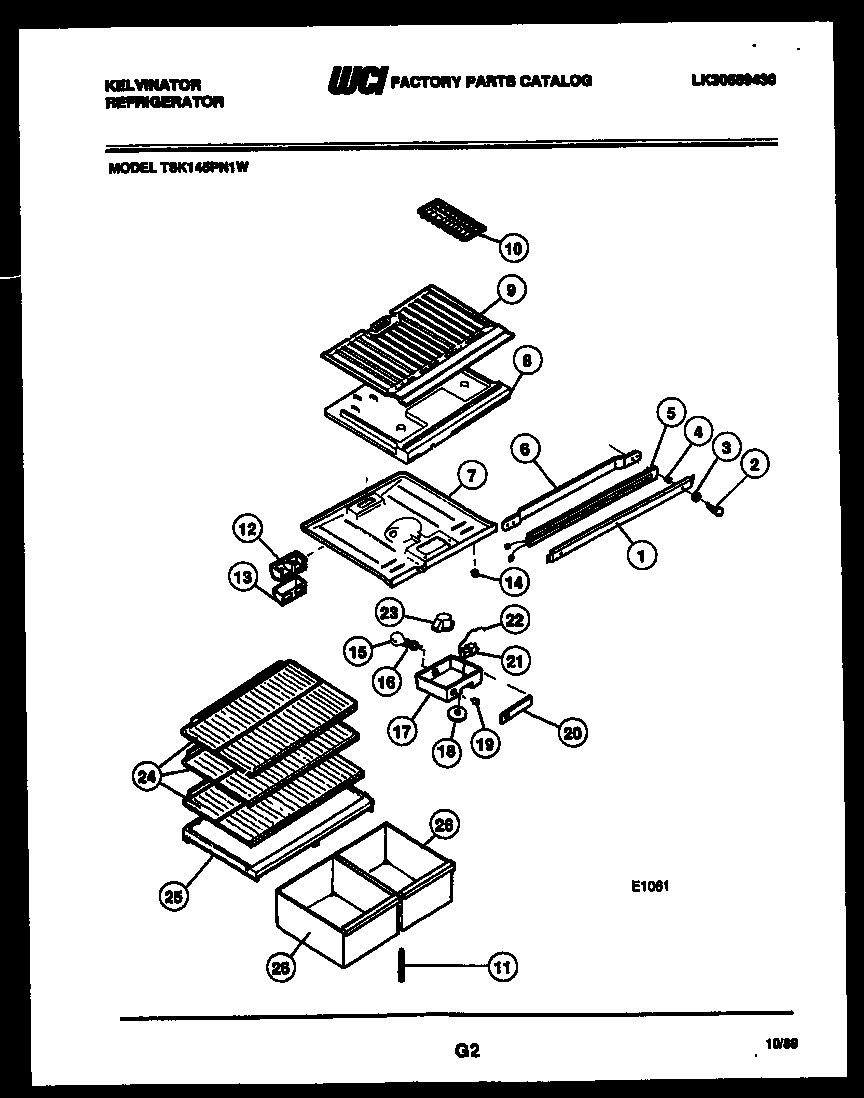

TSK145PN1T 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 3916132
2	SCREW, BRACKET MOUNTING (4)
3	WASHER (2)
4	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
5	WCI G187921
6	CLAMP, MULLION MOUNTING
7	TOP-REFRIGERATOR
7A	SCREW (5)
8A	HARNESS, WIRING
8	DIVIDER-COMPARTMENT
9	BOTTOM ( FREEZER )
10	215667501 Frigidaire Refrigerator Ice Tray Primary
11	SUPPORT-ADJ CRISPER COVER
12	DEFLECTOR AIR
13	WCI G162178
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16	SOCKET LIGHT
17	WCI G176722-03
17A	PLUG BTN (NON-ILLUSTRATED)
17B	5304455650 Frigidaire Refrigerator Screw
18	KNOB
19	SWITCH SLIDE
20	LABEL
21	CONTROL-COLD
21A	WCI G107080
22	TUBE
23A	5304455649 Frigidaire Refrigerator Screw
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24	WCI G172172-01
25	COVER
26	WCI 3016706
