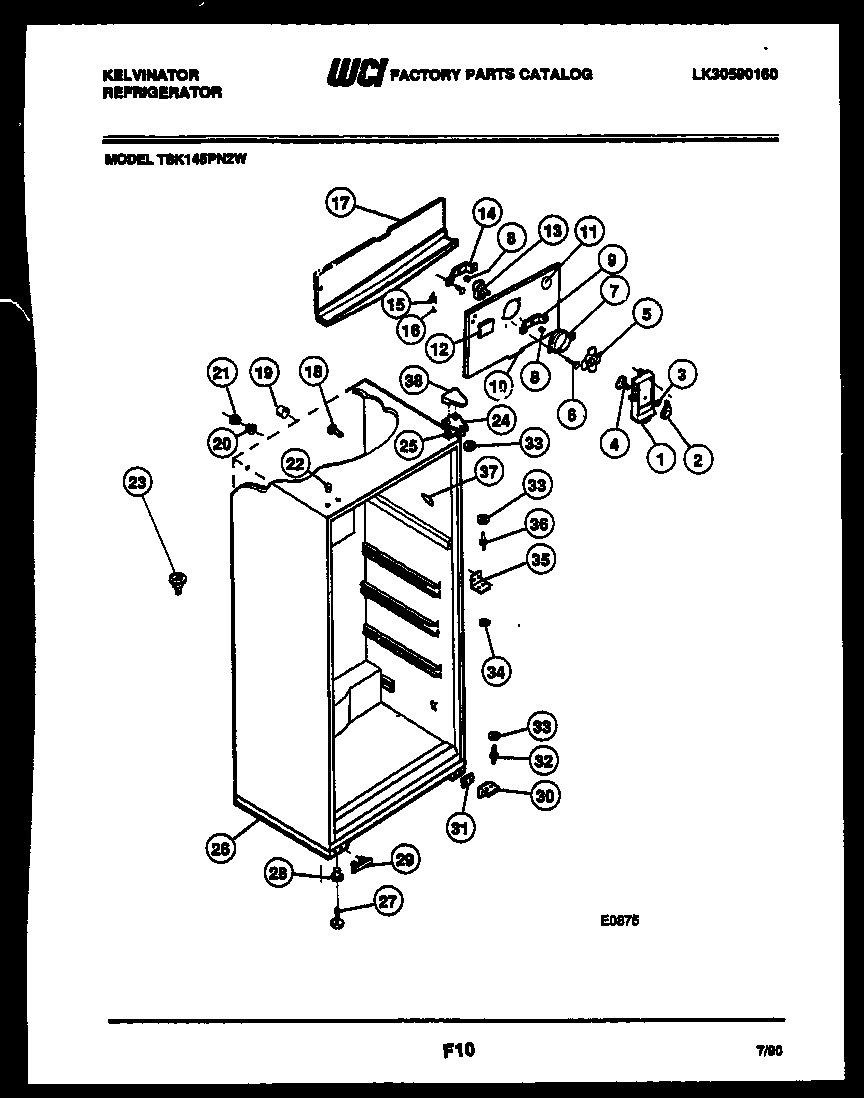

TSK145PN2D 03 – CABINET PARTS

TSK145PN2D 03 – CABINET PARTS

Written by

in

TSK145PN2D 03 – CABINET PARTS

Products

PositionProduct
*14148TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*14148PLUG, BUTTON, CABINET LINER (NI)
1SCREW, HANDLE MOUNTING (2)
2WCI 5308000081
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6218843801 Frigidaire Refrigerator Screw
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303001226
10BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10WCI 3001358
10A5304455650 Frigidaire Refrigerator Screw
115303208309 Frigidaire Refrigerator Plug Hole
12BUTTON – DECORATIVE PLUG
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
15WCI 5308000107
17TROUGH-DRAIN
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23TUBE – DRAIN
23A5304455651 Frigidaire Refrigerator Screw
24BRACKET-UPPER HINGE
25SHIM – UPPER HINGE
26WCI 5303006086
27SCREW-LEVELING (4)
28WCI 5308003584
29COVER-HOLE, LOWER HINGE
30HINGE – LOWER DOOR
30A241710601 Frigidaire Refrigerator Screw
31SHIM-LOWER HINGE
325303001321 Frigidaire Refrigerator Lower Hinge Pin
33WASHER, .34 X .62 X .05, NYLON
34WASHER, .28 X .62 X .19, NYLON
35AWCI 5308012258
35WCI 5303001269
36WCI 5308000184
37TRIM-CAB CORNER-ALMD
38COVER-UPPER HINGE, ALMOND
