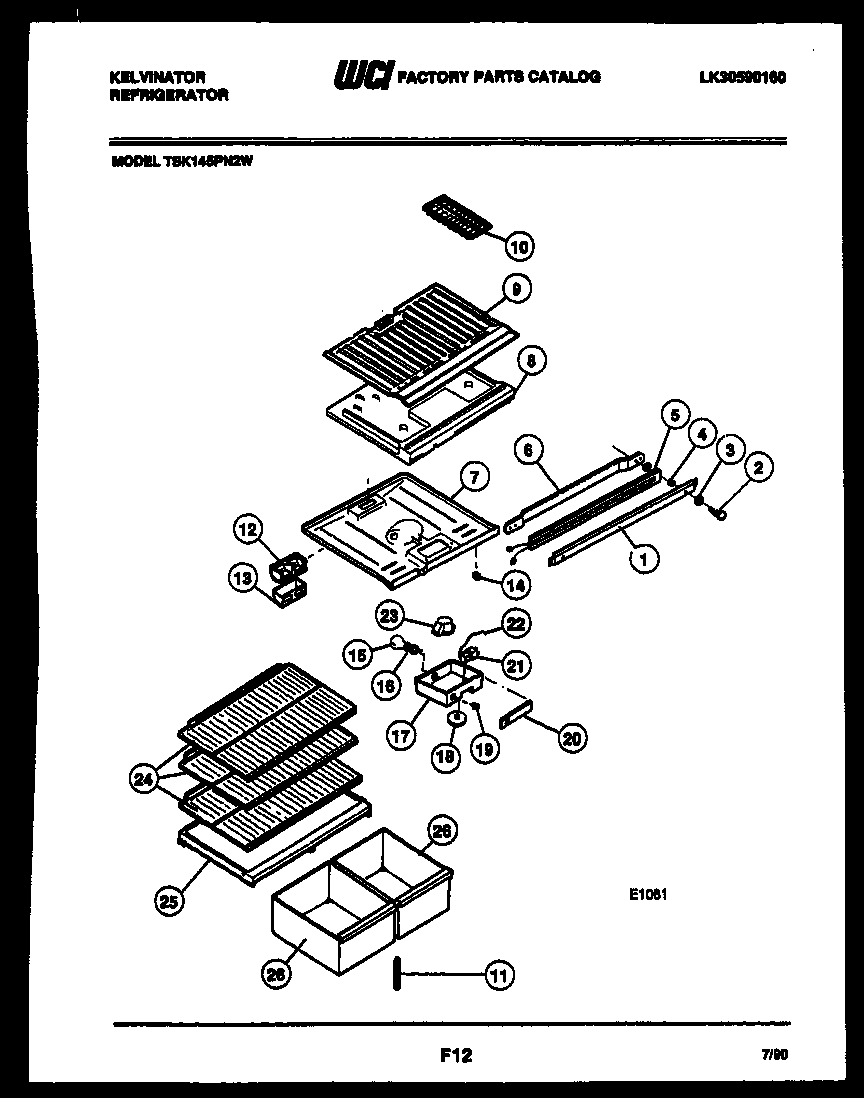

TSK145PN2D 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303916134
2WCI 5308012258
3WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
4WCI 3001370
5WCI 5308017408
6WCI 5308003604
7TOP PANEL-REFR, W/ SNAP BUSHING
7AWCI 5303001380
8WCI 5308000759
8AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
9WCI 5308000748
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SUPPORT-CRISPER CVR, ADJUSTABLE
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17APLUG BTN (NON-ILLUSTRATED)
17B5304455650 Frigidaire Refrigerator Screw
17WCI 5317672203
18WCI 5308010011
19SWITCH-ENERGY SAVER, SLIDE TYPE
20LABEL
21AWCI 5303001260
21WCI 5308015762
22TUBE
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF-SLIDING, REFR, (2)
25WCI 5308000749
26WCI 3016706
