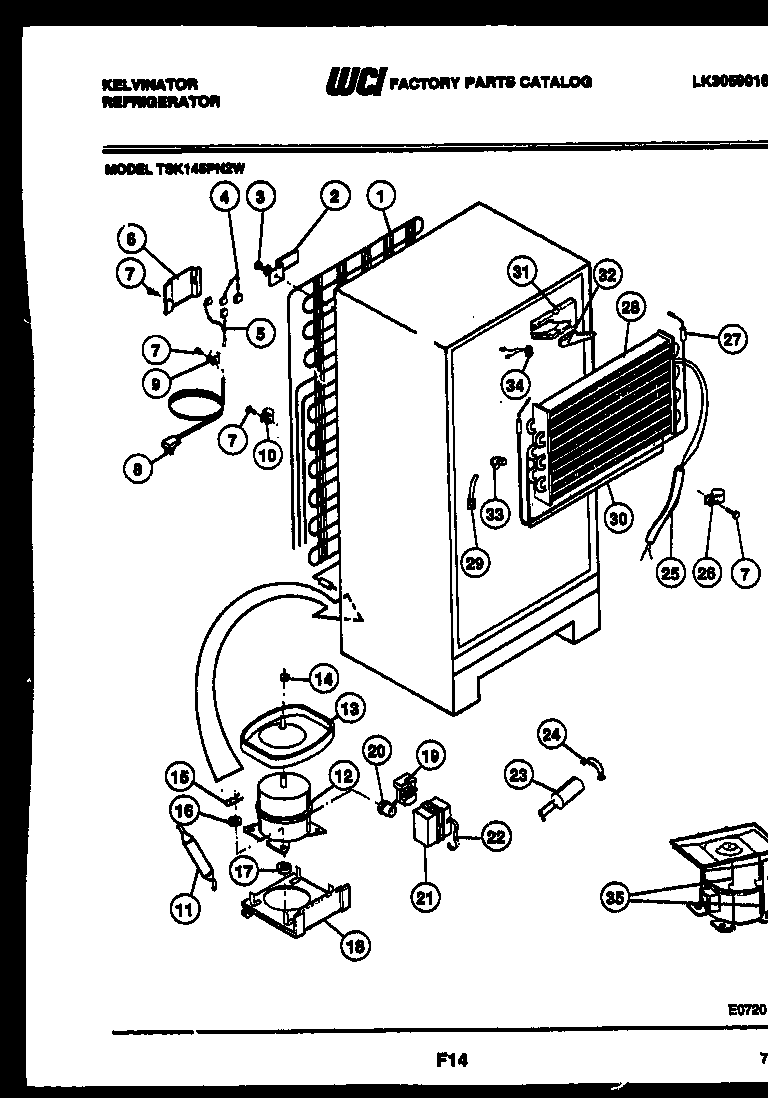

TSK145PN2W 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*14161HOT TUBE REPAIR KIT-SERVICE
1WCI 5303001341
2AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2BRACKET-MTG (4)
3WCI 530800039
4HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
5WIRING HARNESS, COMPRESSOR,
6WCI 5303001197
8CORD-ELECTRIC POWER
95303001199 Frigidaire Refrigerator Wiring Harness Clamp
11B218843801 Frigidaire Refrigerator Screw
115303305677 Frigidaire Replacement Filter Dryer Filters
11AWCI 3201679
12COMPRESSOR W/ ELECTRICALS
13PAN-DEFROST DRAIN, ORIG/SVCE COMPR
13B5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
13APAN-DEFROST-ORIG COMPRESSOR
14Nut,lock `1/4-20 ,drain pan mtg
15CLIP – COMPRESSOR MTG
16WASHER-COMPR MTG
17218513300 Frigidaire Refrigerator Compressor Mount Grommet
18WCI 5308009596
19RELAY-TL
20WCI 3202863
20AWCI 3202891
21WCI 5303209254
22WCI 5303211232
23WCI 5303018427
24A5304455651 Frigidaire Refrigerator Screw
24STRAP CAPACITOR
25HEAT EXCHANGER, SUCTION LINE
265308000133 Frigidaire Refrigerator Clamp
27WCI 5303001362
28EVAPORATOR
295308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
30INSULATOR-EVAP, PLASTIC
31INSULATION BLOCK, RH
32INSULATION PLUG, RH
33INSULATION BLOCK, LH
345303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
35PAN RETAINER KIT, SERVICE
