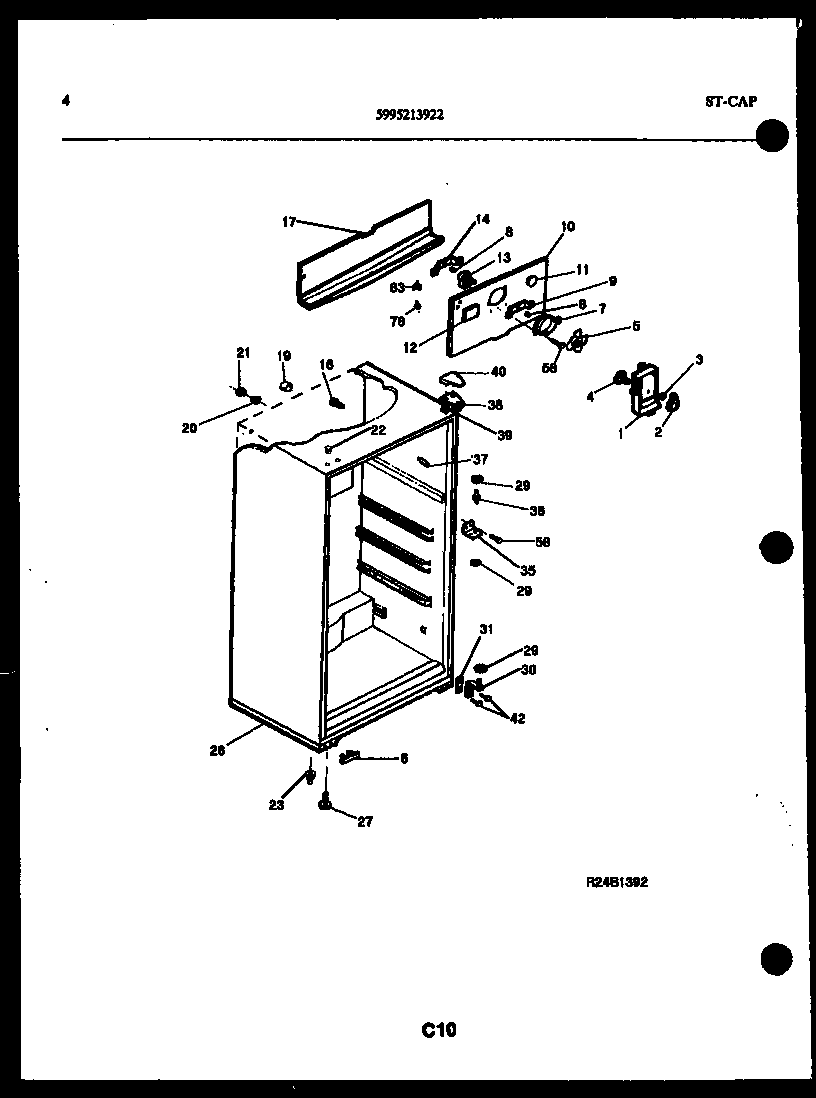

TSK150HN0D 03 – CABINET PARTS

Products

Position	Product
NI	WCI 5308012258
*22856	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1	WCI 5303274054
1	5304455650 Frigidaire Refrigerator Screw
2	WCI 5308000081
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	COVER-HOLE, LOWER HINGE
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 3001358
10	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
11	5303208309 Frigidaire Refrigerator Plug Hole
12	BUTTON - DECORATIVE PLUG
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	TROUGH-DRAIN
18	SUPPORT-COIL COVER
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23	TUBE - DRAIN
26	WCI 5303006086
27	SCREW-LEVELING (4)
29	WASHER, .28 X .62 X .19, NYLON
29	WASHER, .34 X .62 X .05, NYLON
30	HINGE BRACKET - BOTTOM
31	SHIM-LOWER HINGE
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	TRIM-CABINET CORNER, ALMOND
38	BRACKET-UPPER HINGE
39	SHIM - UPPER HINGE
40	COVER-UPPER HINGE, ALMOND
42	241710601 Frigidaire Refrigerator Screw
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
78	5304455651 Frigidaire Refrigerator Screw
83	WCI 5308000107
22858	PLUG, BUTTON, CABINET LINER (NI)
