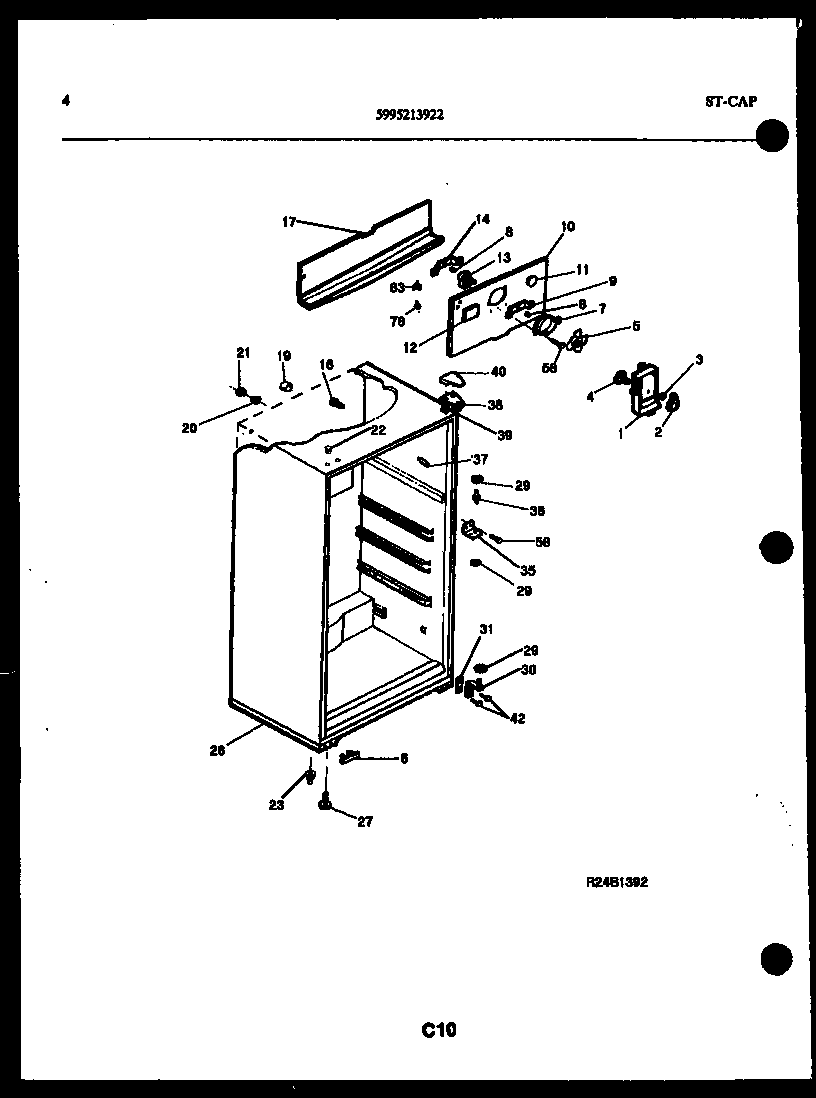

TSK150HN0W 03 – CABINET PARTS

Products

PositionProduct
NIWCI 5308012258
*22856TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1WCI 5303274054
15304455650 Frigidaire Refrigerator Screw
2WCI 5308000081
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6COVER-HOLE, LOWER HINGE
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 3001358
10NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
115303208309 Frigidaire Refrigerator Plug Hole
12BUTTON – DECORATIVE PLUG
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17TROUGH-DRAIN
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, WHITE
23TUBE – DRAIN
26WCI 5303006086
27SCREW-LEVELING (4)
29WASHER, .34 X .62 X .05, NYLON
29WASHER, .28 X .62 X .19, NYLON
30HINGE BRACKET – BOTTOM
31SHIM-LOWER HINGE
35BRACKET-CTR HINGE
36WCI 5308000184
37TRIM-CABINET CORNER, WHITE
38BRACKET-UPPER HINGE
39SHIM – UPPER HINGE
40COVER-UPPER HINGE, WHITE
42241710601 Frigidaire Refrigerator Screw
565303001321 Frigidaire Refrigerator Lower Hinge Pin
785304455651 Frigidaire Refrigerator Screw
83WCI 5308000107
22858PLUG, BUTTON, CABINET LINER (NI)
