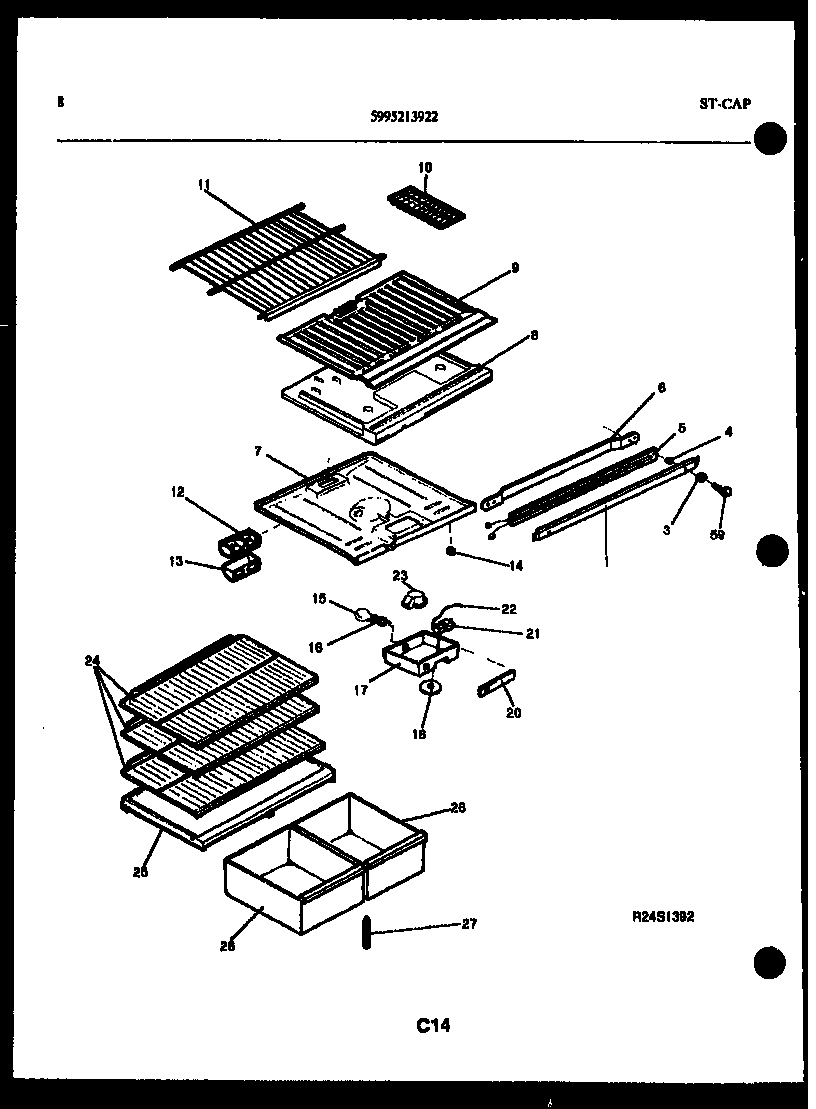

TSK150HN0W 05 – SHELVES AND SUPPORTS

TSK150HN0W 05 – SHELVES AND SUPPORTS

Written by

in

TSK150HN0W 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*22861PLUG BTN (NON-ILLUSTRATED)
*228615304455650 Frigidaire Refrigerator Screw
1WCI 5303200465
3WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
4SPACER-MULLION MTG, STEEL
5WCI 5303281861
6WCI 5308003604
7TOP PANEL-REFR, W/ SNAP BUSHING
7BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7WCI 5303001380
8HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
8WCI 5308000759
9WCI 5308000748
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SCREW (2)
11SUPPORT-SHELF (2)
11WCI 5316686201
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17WCI 5303282143
18WCI 5308010011
20WCI 5303282232
21WCI 5308015762
21WCI 5303001260
22TUBE
235304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 5303274040
25WCI 5308000749
26WCI 5303282140
27SUPPORT-CRISPER CVR, ADJUSTABLE
59WCI 5308012258
