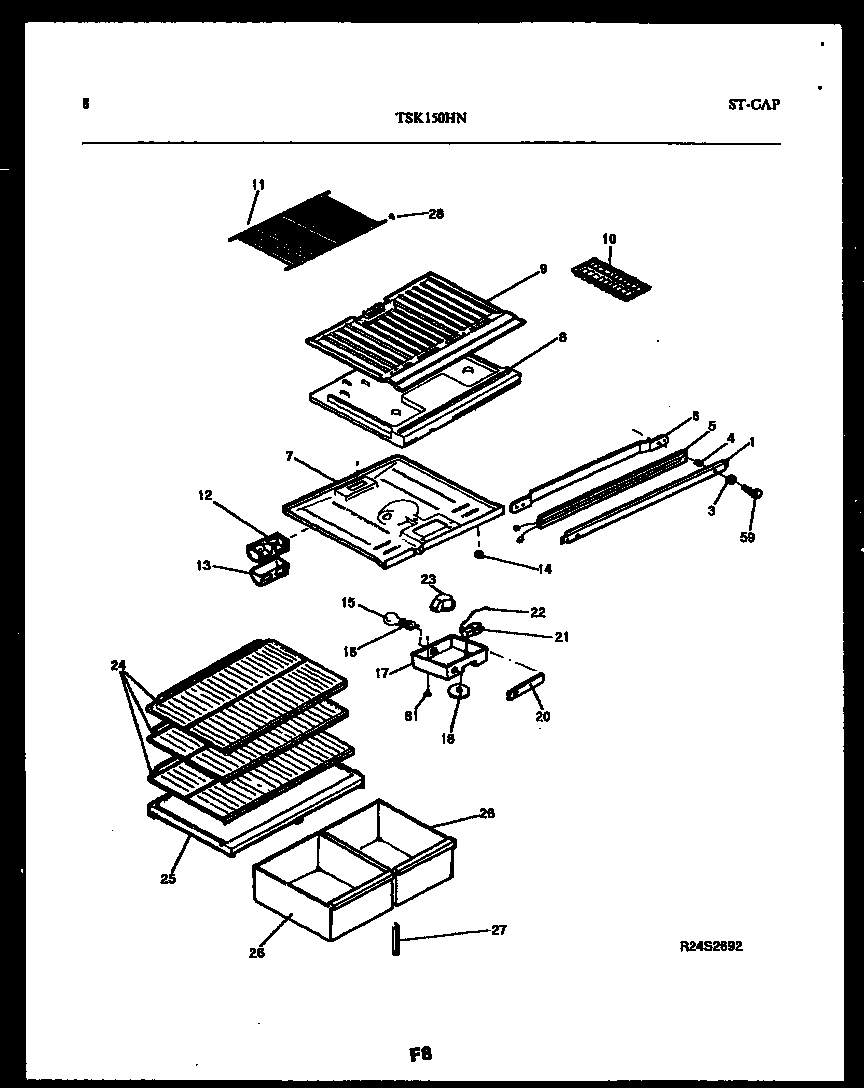

TSK150HN2T 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3916132
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303281861
6WCI 5308003604
7WCI 5303001380
7BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7TOP PANEL-REFR, W/ SNAP BUSHING
8WCI 5308000759
9WCI 5308000748
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303284040
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17PLUG BTN (NON-ILLUSTRATED)
17WCI 5303282143
17WCI 08016567
18WCI 5308010011
20WCI 5303282232
21WCI 5303001260
21WCI 5308015762
22TUBE
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
235304455649 Frigidaire Refrigerator Screw
24SHELF, SLIDING, WIRE, REFR SECTION
24WCI 5303283297
25WCI 5308000749
26WCI 5303282140
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
