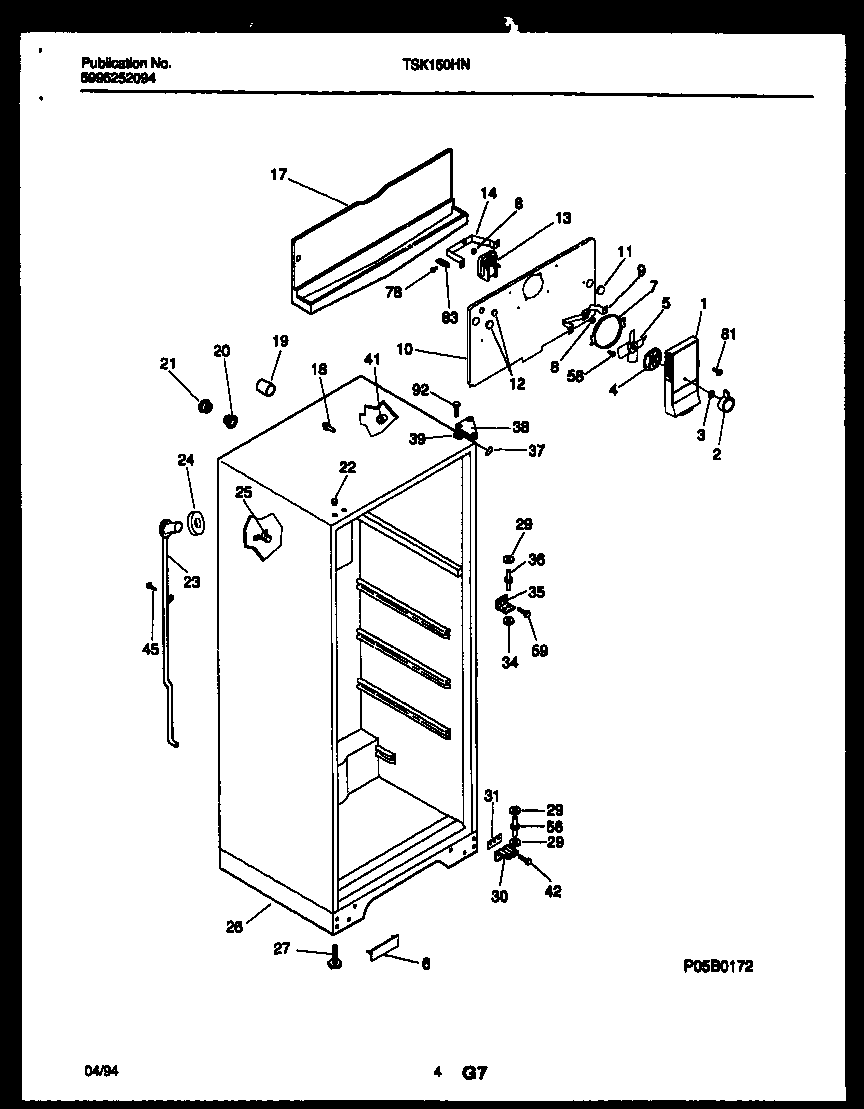

TSK150HN3T 03 – CABINET PARTS

Products

Position	Product
1	WCI 5303274054
2	WCI 5308000081
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	COVER-HOLE, LOWER HINGE
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 215560400
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 215079100
12	WCI 215079000
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	TROUGH-DRAIN
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	BUTTON-HINGE-WHEAT
23	WCI 5303210377
24	WCI 5303207353
25	WCI 215774100
26	WCI 5303006086
27	SCREW-LEVELING (4)
29	WASHER, .34 X .62 X .05, NYLON
30	WCI 215044100
31	SHIM-LOWER HINGE
34	WASHER, .28 X .62 X .19, NYLON
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	WCI 5303202338
38	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38	BRACKET-UPPER HINGE
39	SHIM – UPPER HINGE
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41	5304509705 Frigidaire Refrigerator Grommet
42	241710601 Frigidaire Refrigerator Screw
45	5304455651 Frigidaire Refrigerator Screw
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	WCI 5308012258
