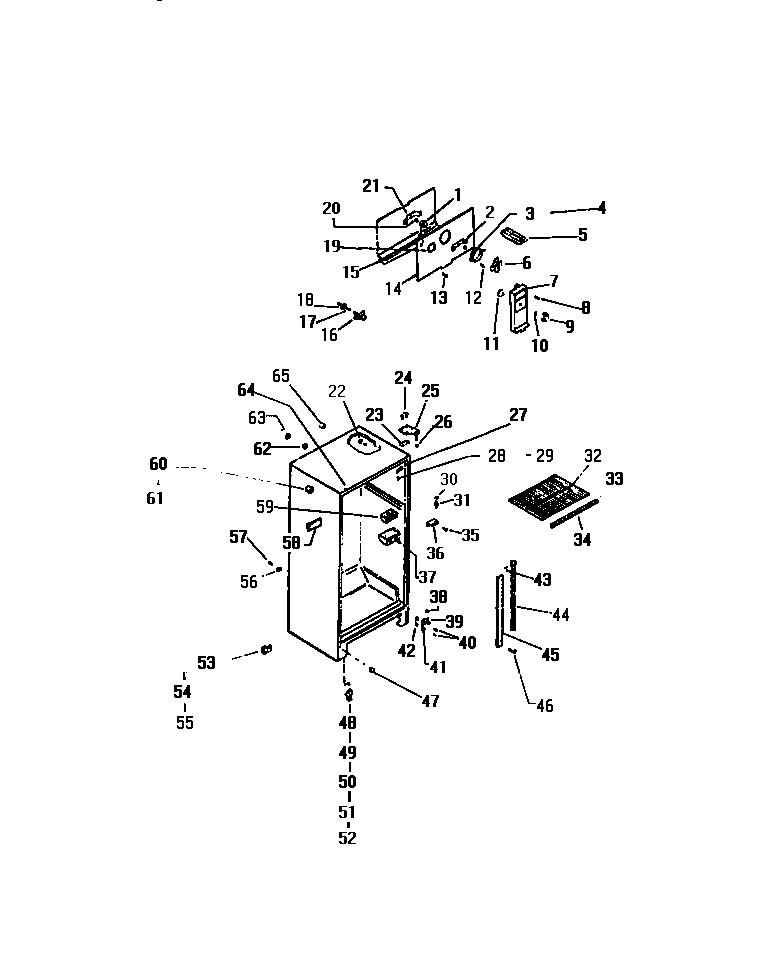

TSK160AN6T 03 – CABINET W/ FAN ASSEMBLY

Products

Position	Product
*79301	WCI G164571
*79303	PIN PUSH SPOUT (2)
*79306	COVER HINGE, WHEAT
1	5300158289 Frigidaire Evaporator Fan Motor
2	BRACKET, FRONT MOTOR MOUNTING
3	RING, FAN ORIFICE
4	NUT, ORIFICE (2)
5	215667501 Frigidaire Refrigerator Ice Tray Primary
6	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	WCI 163061-36
9	WCI G162663-11
10	NUT, DAMPER MOUNTING
11	DAMPER FAN COVER
12	5304455650 Frigidaire Refrigerator Screw
14	COVER-COIL
15	TROUGH-DRAIN
16	SPOUT DRAIN TUBE
17	TUBE, DRAIN
18	WCI G179863
19	BUTTON DECORATIVE PLUG
20	G187559 Frigidaire Refrigerator Bushing
21	BRACKET, REAR MOTOR MOUNTING
22	WCI G163669
23	WCI G183861
24	241710601 Frigidaire Refrigerator Screw
25	BRACKET, TOP HINGE
27	WCI G179684-09
28	5304509705 Frigidaire Refrigerator Grommet
29	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
31	WCI G142220
32	WCI G177059-01
33	WCI G166495-01
34	WCI G172434-18
35	SCREW, BRACKET MOUNTING (4)
36	BRACKET, HINGE CENTER
37	WCI G162178
38	WCI G103903
39	5303001321 Frigidaire Refrigerator Lower Hinge Pin
41	BRACKET, HINGE, LOWER
42	SHIM, HINGE
43	5304455852 Frigidaire Refrigerator Screw
44	CHANNEL, SHELF (2)
45	CHANNEL, CENTER SHELF, MOUNTING
47	WCI G166912
48	ROLLER FRONT, ADJUSTABLE (2)
49	SPRING-ROLLER (2)
50	BOLT-ROLLER (2)
51	SUPPORT, ROLLER (2)
52	WASHER
53	ROLLER, REAR (2)
54	BOLT ROLLER (2)
55	5308000039 Frigidaire Refrigerator Screw
56	WCI G101747
57	5304455651 Frigidaire Refrigerator Screw
58	PAD, FOAM (2)
59	DEFLECTOR AIR
60	SPACER, FREEZER (2)
61	SCREW, CHANNEL MOUNTING (3)
62	WCI G174733
63	WCI G174734
64	WCI G174747-09
65	TUBE, INSULATION (2)
