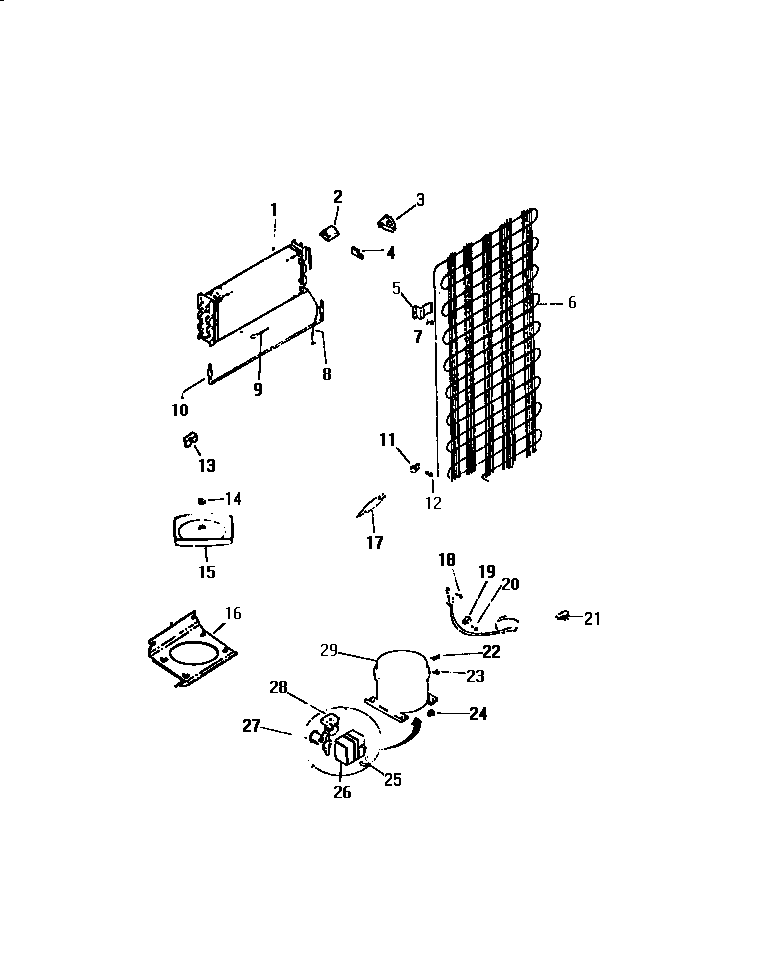

TSK160AN6T 05 – SYSTEM

Products

Position	Product
*79316	WCI G179024
1	WCI G176806
2	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
3	BLOCK, EVAPORATOR, RH
4	PLUG, EVAPORATOR INSULATION BLOCK, R H
5	BRACKET-CONDENSER MOUNTING (4)
6	WCI G178225
8	HEAT EXCHANGER
9	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
10	HEATER, DEFROST
11	WCI G101747
13	BLOCK, EVAPORATOR, LH
14	NUT, LOCK
15	DEFROST PAN
16	PLATE, COMPRESSOR MOUNTING
17	5303305677 Frigidaire Replacement Filter Dryer Filters
18	5308000039 Frigidaire Refrigerator Screw
19	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
20	5304455651 Frigidaire Refrigerator Screw
20A	WASHER
21	CORD, SERVICE
22	CLIP, COMPRESSOR MOUNTING (4)
23	WASHER, COMPRESSOR MOUNTING (4)
24	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	STRAP-COVER
26	WCI G185792
27	WCI G185797
28	WCI G182225-12
29	COMPRESSOR
