TSK160AN6W 04 – SHELVES, CONTROLS, DIVIDER, MULLION

TSK160AN6W 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

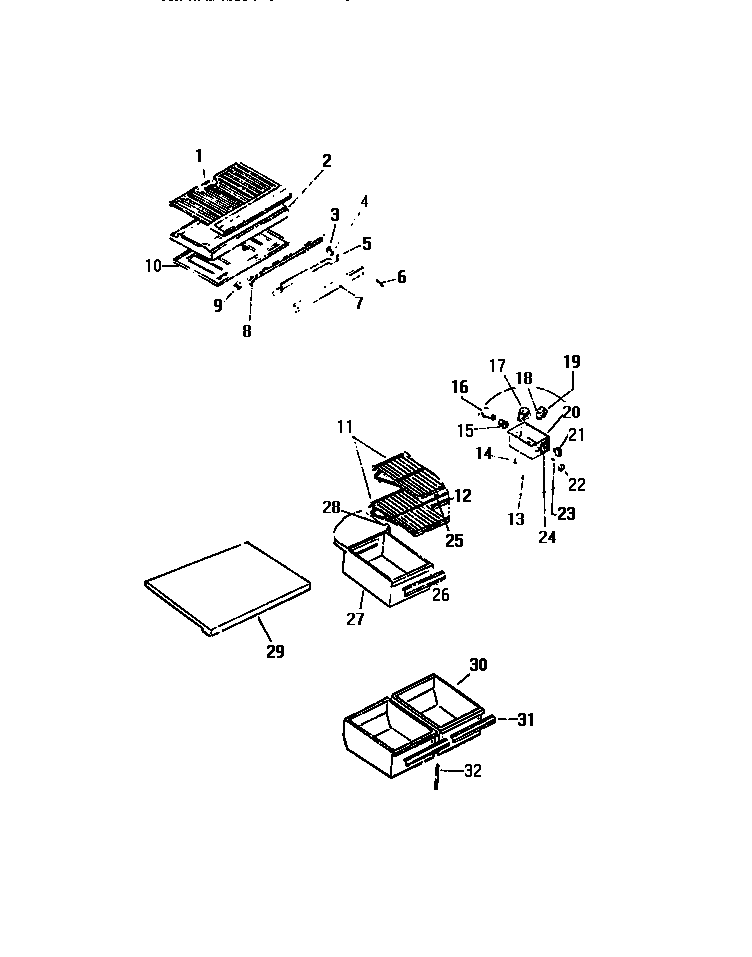

TSK160AN6W 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
*79317BUTTON, PLUG, LINER (2)
*79309TAPPING PLATE (2)
*79310BUTTON, PLUG, ICE MAKER HARNESS
*79311BUTTON, PLUG, ICE MAKER AND FREEZER SHELF MOUNTING HOLES
*79313WCI G186589
*79312HARNESS, WIRING
*79314SERVICE DATA SHEET
*79315WCI G183100-11
1BOTTOM, FC
2DIVIDER, CENTER
3SPACER, MULLION (2)
4WASHER (2)
5CLAMP, MULLION MOUNTING
6SCREW, BRACKET MOUNTING (4)
7WCI G490086-01
8HTR, CENTER RAIL
95309918806 Frigidaire Refrigerator Light Switch Door
10ASCREW (5)
10TOP PC
11WCI G177390-04
12WCI G172343-13
13WCI G106289
145304455650 Frigidaire Refrigerator Screw
15SOCKET LIGHT
16316538904 Frigidaire Oven Lamp Light
17215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
18TUBE
19COLD CONTROL
20WCI G174655-15
21SWITCH SLIDE
22KNOB CONTROL
23WCI G107080
24WCI G178294-01
25CLIP-TRIM (NON-ILLUSTRATED)
26TRIM, MEAT KEEPER
27WCI G177623-01
28WCI G177106-01
29COVER-CRISPER
30WCI G178303-01
31TRIM, CRISPER (2)
32SUPPORT, CRISPER COVER
