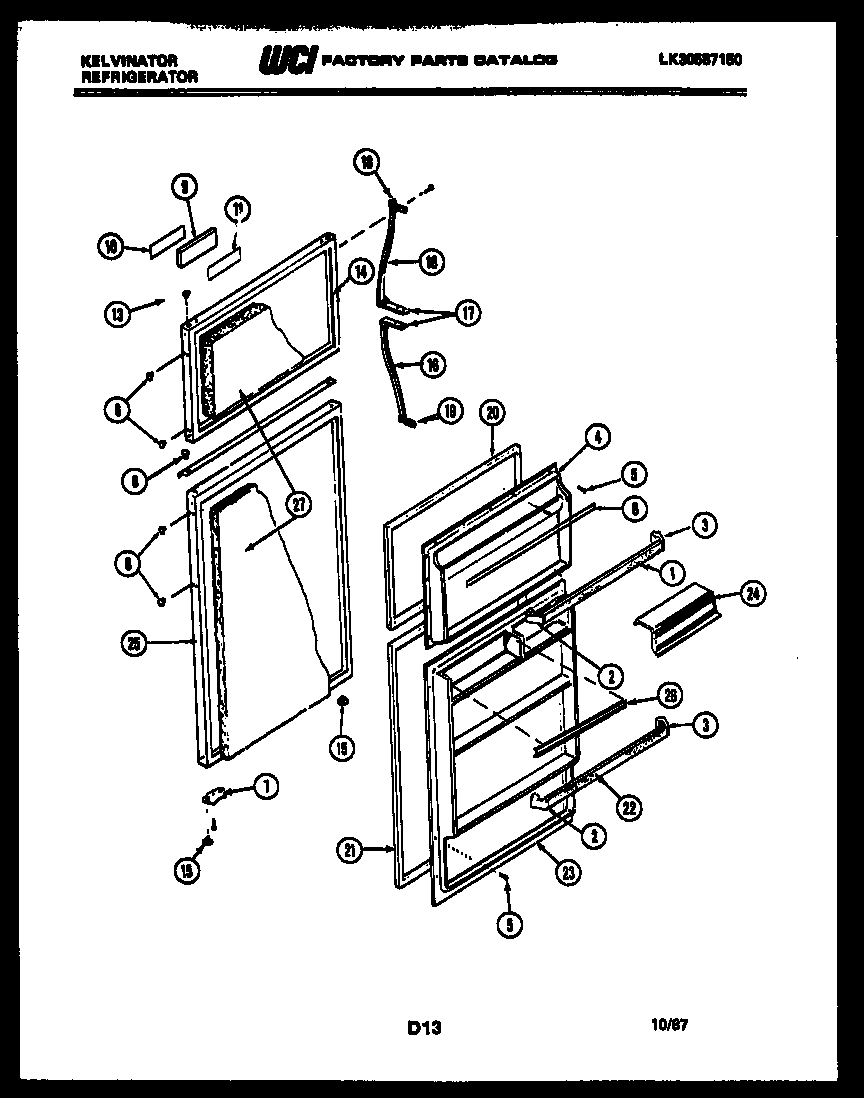

TSK160EN0V 02 – DOOR PARTS

Products

Position	Product
1	WCI G161019-76
2	SUPPORT LS (3)
3	SUPPORT RS (3)
4	INNER PANEL
5	218843801 Frigidaire Refrigerator Screw
6	WCI G170232-25
7A	STOP, DOOR. PC & FC (2)
8	WCI G162977-08
9	NAMEPLATE FRAME
10	LABEL-NAMEPLATE
12	WCI G189468-12
13	WCI G169332
14	WCI G189685-08
15	BEARING, HINGE (3)
16A	WCI G189456-01
16	WCI G189454-02
17	END-HANDLE (2)
18	WCI G189452-01
19A	WCI G185566
19	WCI G189451-01
20	WCI G188932-03
21	218730603 Frigidaire Door Gasket
22	WCI G161019-77
23	INNER PANEL
24	DOOR, DAIRY
25	WCI G189689-08
26A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
26	TRIM, SHELF
27	WCI G89643
