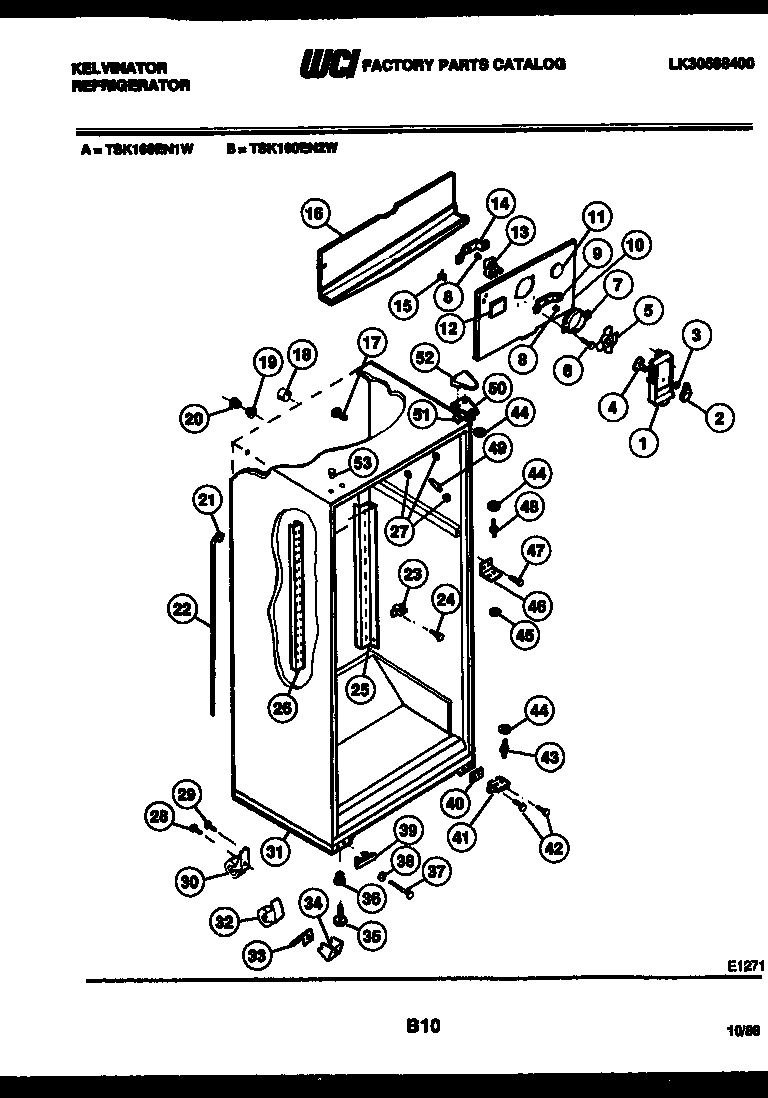

TSK160EN1F 03 – CABINET PARTS

Products

Position	Product
*53110	BUTTON, LINER
1	WCI G163061-86
1A	5304455650 Frigidaire Refrigerator Screw
2	KNOB-DAMPER
3	NUT, DAMPER MOUNTING
4	DAMPER FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING, FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI G185302
10A	NUT, ORIFICE (2)
10	COVER-COIL
11	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12	BUTTON DECORATIVE PLUG
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI G185303
15A	5304455651 Frigidaire Refrigerator Screw
15	WCI G164571
16	TROUGH-DRAIN
17	WCI G163669
18	TUBE, INSULATION (2)
19	WCI G174733
20	WCI G174734
21	RING, SEAL (NON-ILLUSTRATED)
22	TUBE, DRAIN
23	SPOUT DRAIN TUBE
24	PIN PUSH SPOUT (2)
25	CHANNEL, SHELF (2)
25A	5304455852 Frigidaire Refrigerator Screw
26A	SCREW (3) (NON-ILLUSTRATED)
26	WCI G189341
27A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
27	5304509705 Frigidaire Refrigerator Grommet
28	BOLT ROLLER (2)
30	ROLLER, REAR (2)
31	CABINET BASE
32	ROLLER FRONT, ADJUSTABLE (2)
33	SPRING-ROLLER (2)
34	SUPPORT, ROLLER (2)
35	LEG-LEVELING (2)
36	NUT, ANCHOR (2)
37	BOLT-ROLLER (2)
38	WASHER
39	WCI G166912
40A	TAPPING, PLATE (2)
40	SHIM, HINGE
41	BRACKET-HINGE
43	5303001321 Frigidaire Refrigerator Lower Hinge Pin
44	WCI G103903
45	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
46	BRACKET, HINGE CENTER
47A	WASHER (2)
47	SCREW, BRACKET MOUNTING (4)
48	WCI G142220
49	WCI G179684-10
50A	241710601 Frigidaire Refrigerator Screw
50	BRACKET, TOP HINGE
51	WCI G183861
52	COVER HINGE, COFFEE
53	WCI G174747-10
