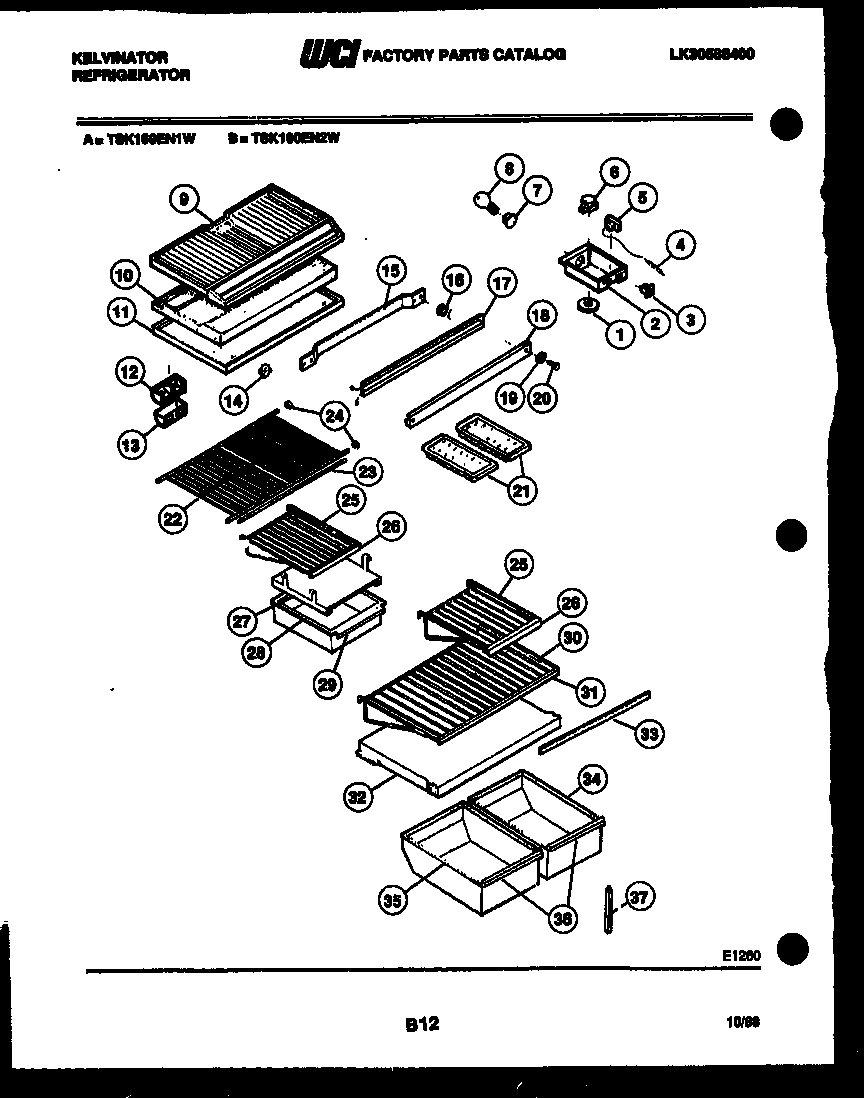

TSK160EN1F 04 – SHELVES AND SUPPORTS

TSK160EN1F 04 – SHELVES AND SUPPORTS

Written by

in

TSK160EN1F 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1KNOB
2WCI G176722-03
2B5304455650 Frigidaire Refrigerator Screw
2ALABEL
3SWITCH SLIDE
4TUBE
5WCI 3200810
5AWCI G107080
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
6A5304455649 Frigidaire Refrigerator Screw
7SOCKET LIGHT
8316538904 Frigidaire Oven Lamp Light
9BOTTOM, FC
10AHARNESS, WIRING
10DIVIDER, CENTER
11ASCREW (5)
11TOP-REFRIGERATOR
12DEFLECTOR AIR
13WCI G162178
145309918806 Frigidaire Refrigerator Light Switch Door
15CLAMP, MULLION MOUNTING
16SPACER (NON-ILLUSTRATED)
17HTR, CENTER RAIL
18WCI 3916133
19WASHER (2)
20SCREW, BRACKET MOUNTING (4)
21215667501 Frigidaire Refrigerator Ice Tray Primary
22WCI G177059-01
23TRIM, SHELF, FREEZER
24WCI G166495-01
25WCI G177390-04
26TRIM, SHELF FRONT (4)
27WCI G177106-01
28WCI G177623-06
29WCI G161013-67
30SHELF, FULL
31TRIM, FRONT
32WCI G490016-03
33GASKET, COVER
34PAN, CRISPER RS
35PAN, CRISPER LS
36TRIM-SMALL PAN
37SUPPORT, CRISPER COVER
