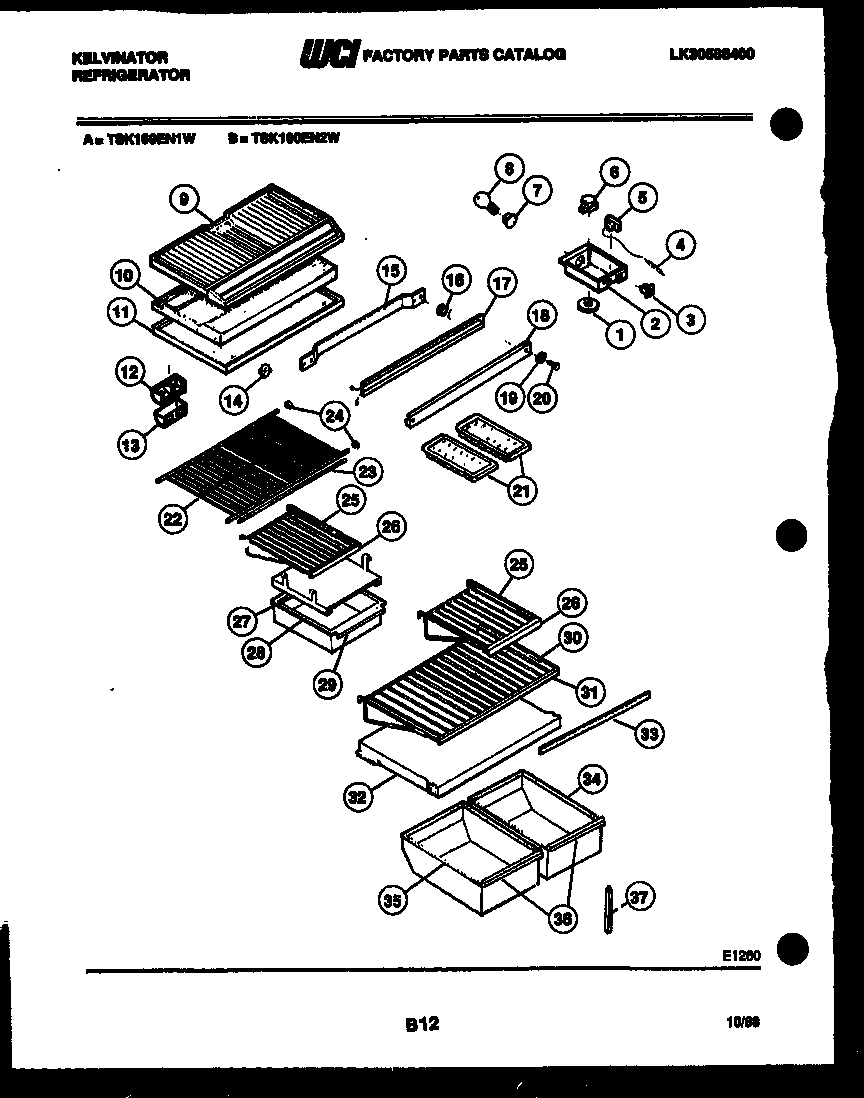

TSK160EN1T 04 – SHELVES AND SUPPORTSadmin2025-04-26T09:49:55+00:00TSK160EN1T 04 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| 1 | KNOB |
| 2 | WCI G176722-03 |
| 2B | 5304455650 Frigidaire Refrigerator Screw |
| 2A | LABEL |
| 3 | SWITCH SLIDE |
| 4 | TUBE |
| 5 | WCI 3200810 |
| 5A | WCI G107080 |
| 6 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 6A | 5304455649 Frigidaire Refrigerator Screw |
| 7 | SOCKET LIGHT |
| 8 | 316538904 Frigidaire Oven Lamp Light |
| 9 | BOTTOM, FC |
| 10A | HARNESS, WIRING |
| 10 | DIVIDER, CENTER |
| 11A | SCREW (5) |
| 11 | TOP-REFRIGERATOR |
| 12 | DEFLECTOR AIR |
| 13 | WCI G162178 |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | CLAMP, MULLION MOUNTING |
| 16 | SPACER (NON-ILLUSTRATED) |
| 17 | HTR, CENTER RAIL |
| 18 | WCI 3916132 |
| 19 | WASHER (2) |
| 20 | SCREW, BRACKET MOUNTING (4) |
| 21 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 22 | WCI G177059-01 |
| 23 | TRIM, SHELF, FREEZER |
| 24 | WCI G166495-01 |
| 25 | WCI G177390-04 |
| 26 | TRIM, SHELF FRONT (4) |
| 27 | WCI G177106-01 |
| 28 | WCI G177623-06 |
| 29 | WCI G161013-67 |
| 30 | SHELF, FULL |
| 31 | TRIM, FRONT |
| 32 | WCI G490016-03 |
| 33 | GASKET, COVER |
| 34 | PAN, CRISPER RS |
| 35 | PAN, CRISPER LS |
| 36 | TRIM-SMALL PAN |
| 37 | SUPPORT, CRISPER COVER |
