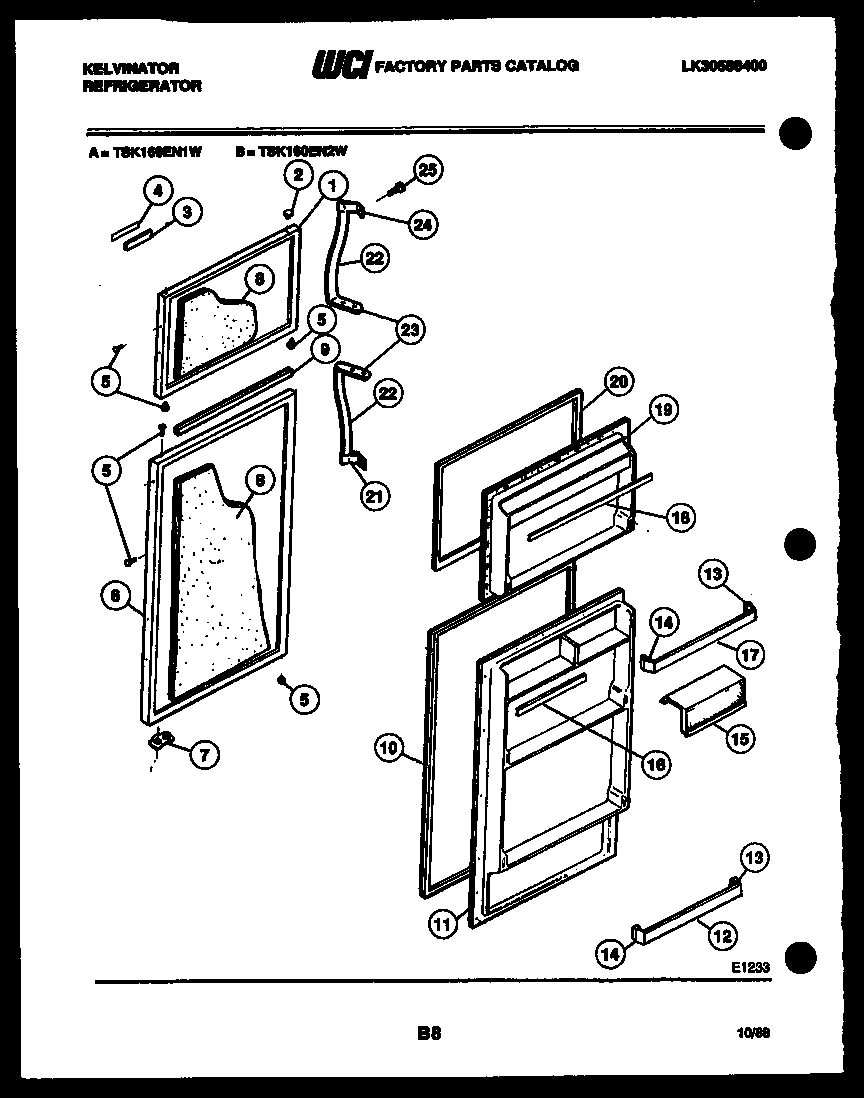

TSK160EN2T 02 – DOOR PARTS

Products

Position	Product
1	WCI 3916295
2	WCI G169332-09
3A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
3	NAMEPLATE FRAME
4	LABEL-NAMEPLATE
5	WCI G162977-09
6A	BEARING, HINGE (3)
6	REFR DOOR-WHEAT
7A	STOP, DOOR. PC & FC (2)
8	WCI G89643
9	WCI G189468-12
10	218730603 Frigidaire Door Gasket
11	INNER PANEL
12	WCI G161019-77
13	SUPPORT RS (3)
14	SUPPORT LS (3)
15	DOOR, DAIRY
16	TRIM, SHELF
17	WCI G161019-76
18	WCI G170232-25
18A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
19A	5304455651 Frigidaire Refrigerator Screw
19	INNER PANEL
20	GASKET-FREEZER
21	WCI G189451-01
22	WCI 3201377
22A	TRIM INSERT-GRIP (2) (NON-ILLUSTRATED)
23	END-HANDLE (2)
24	WCI G189452-01
25	WCI G185566
