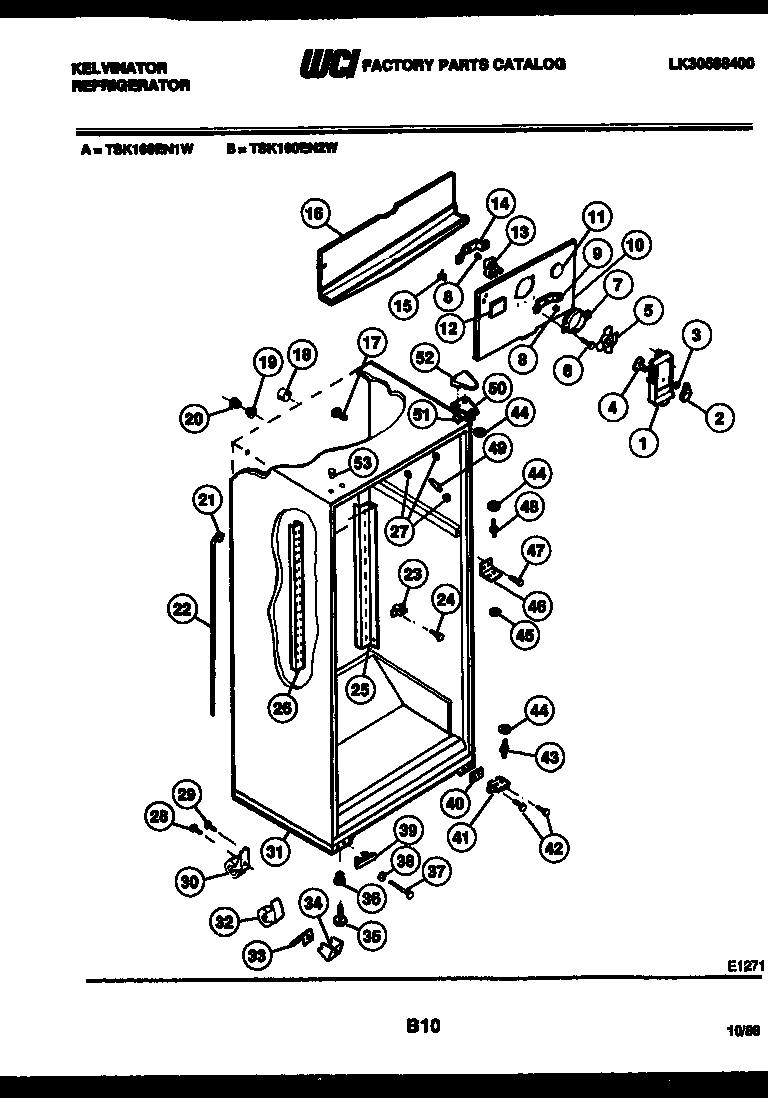

TSK160EN2W 03 – CABINET PARTS

Products

PositionProduct
*53110BUTTON, LINER
1A5304455650 Frigidaire Refrigerator Screw
1WCI G163061-86
2KNOB-DAMPER
3NUT, DAMPER MOUNTING
4DAMPER FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING, FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI G185302
10ANUT, ORIFICE (2)
10COVER-COIL
11PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12BUTTON DECORATIVE PLUG
135300158289 Frigidaire Evaporator Fan Motor
14WCI G185303
15A5304455651 Frigidaire Refrigerator Screw
15WCI G164571
16TROUGH-DRAIN
17WCI G163669
18TUBE, INSULATION (2)
19WCI G174733
20WCI G174734
21RING, SEAL (NON-ILLUSTRATED)
22TUBE, DRAIN
23SPOUT DRAIN TUBE
24PIN PUSH SPOUT (2)
25A5304455852 Frigidaire Refrigerator Screw
25CHANNEL, SHELF (2)
26WCI G189341
26ASCREW (3) (NON-ILLUSTRATED)
275304509705 Frigidaire Refrigerator Grommet
27A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
28BOLT ROLLER (2)
30ROLLER, REAR (2)
31CABINET BASE
32ROLLER FRONT, ADJUSTABLE (2)
33SPRING-ROLLER (2)
34SUPPORT, ROLLER (2)
35LEG-LEVELING (2)
36NUT, ANCHOR (2)
37BOLT-ROLLER (2)
38WASHER
39WCI G166912
40SHIM, HINGE
40ATAPPING, PLATE (2)
41BRACKET-HINGE
435303001321 Frigidaire Refrigerator Lower Hinge Pin
44WCI G103903
45WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
46BRACKET, HINGE CENTER
47AWASHER (2)
47SCREW, BRACKET MOUNTING (4)
48WCI G142220
49WCI G179684-01
50A241710601 Frigidaire Refrigerator Screw
50BRACKET, TOP HINGE
51WCI G183861
52COVER HINGE, WHITE
53WCI G174747–01
