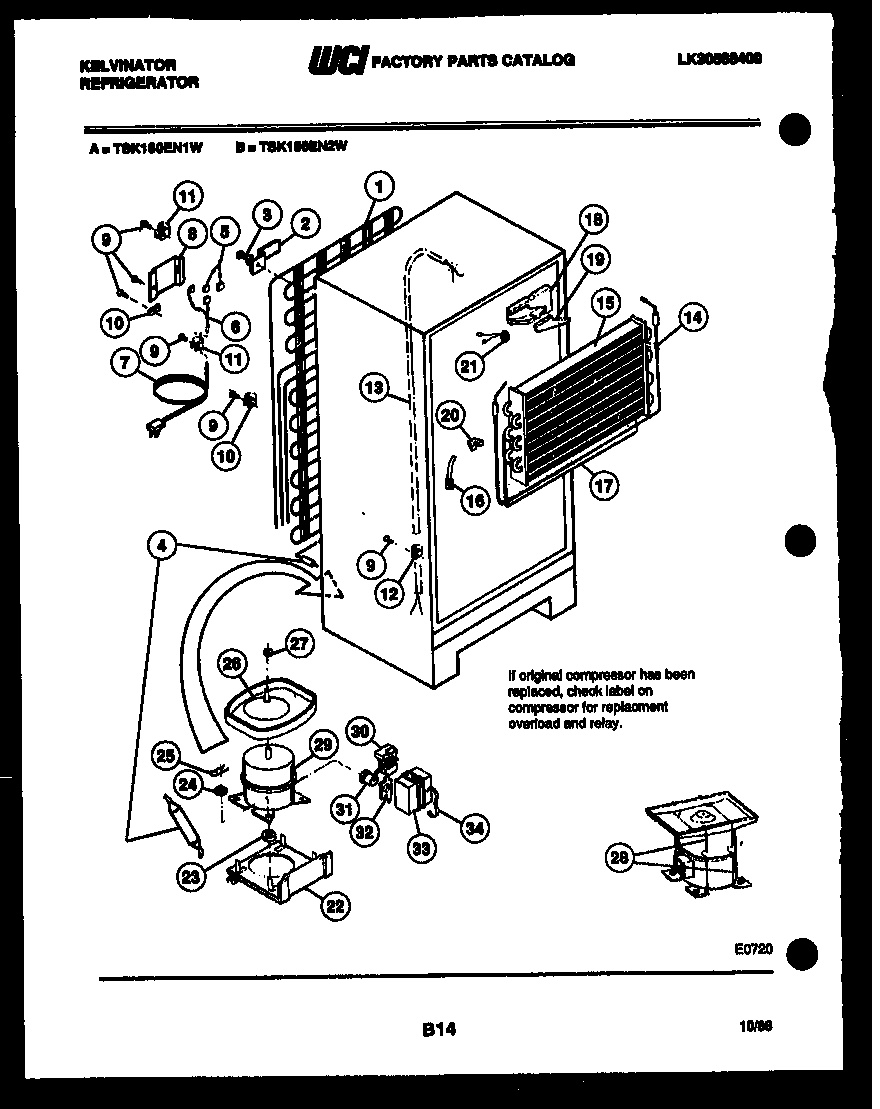

TSK160EN2W 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

TSK160EN2W 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

TSK160EN2W 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*53189HOT TUBE REPAIR KIT
1WCI G178225
2BRACKET-CONDENSER MOUNTING (4)
35308000039 Frigidaire Refrigerator Screw
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI G178418
6HARNESS-COMPRESSOR
7CORD, SERVICE
8WCI G183584
95304455651 Frigidaire Refrigerator Screw
105303001199 Frigidaire Refrigerator Wiring Harness Clamp
11240396801 Frigidaire Refrigerator Tube Clamp
13HEAT-EXCH
14HEATER, DEFROST
15EVAPORATOR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR
18BLOCK, EVAPORATOR, RH
19PLUG, EVAPORATOR INSULATION BLOCK, R H
20BLOCK, LEFT SIDE
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22PLATE
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER, COMPRESSOR MOUNTING (4)
25CLIP, COMPRESSOR MOUNTING (4)
26ADEFROST PAN & NUT
26B5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
26DEFROST PAN
27NUT, LOCK
28PAN RETAINER KIT-SERVICE
29COMPRESSOR
30WCI G182225-12
30AWCI G182225-11
31WCI G185797
31AWCI G187874
33WCI G185792
34A5303006412 Frigidaire Refrigerator Cover Mounting Strap
34STRAP-COVER
