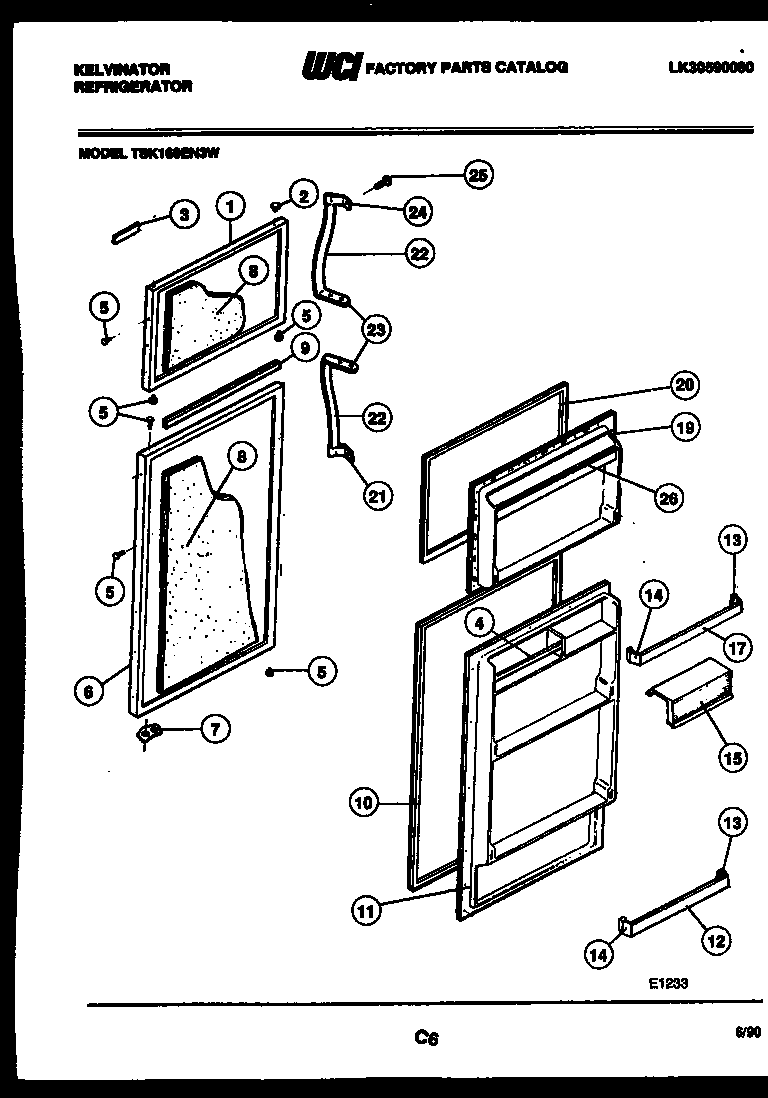

TSK160EN3D 02 – DOOR PARTSadmin2025-04-26T09:48:29+00:00TSK160EN3D 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | WCI 3916297 |
| 2 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 3 | NAMEPLATE-ASSY |
| 4 | TRIM, SHELF |
| 4A | TAPE, ADHESIVE, 60`` LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC |
| 5 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 6 | REFRIGERATOR DOOR-ALMOND |
| 6A | BEARING-HINGE |
| 7 | WCI 5308000255 |
| 8 | INSULATION-BULK (NON-ILLUSTRATED) |
| 9 | WCI 5303209881 |
| 10 | 218730603 Frigidaire Door Gasket |
| 11 | WCI 5318359102 |
| 12 | WCI G161019-77 |
| 13 | WCI 5317828701 |
| 14 | WCI 5317828401 |
| 15 | DOOR, DAIRY |
| 17 | WCI G161019-76 |
| 19 | WCI 5318358902 |
| 19A | 218843801 Frigidaire Refrigerator Screw |
| 20 | WCI 5303001399 |
| 21 | HANDLE, END-BOTTOM |
| 22 | WCI 5303201377 |
| 22A | TRIM INSERT-GRIP (2) |
| 23 | WCI 5318945301 |
| 24 | HANDLE END-TOP |
| 25 | WCI 5308011745 |
| 26 | WCI G170232-25 |
