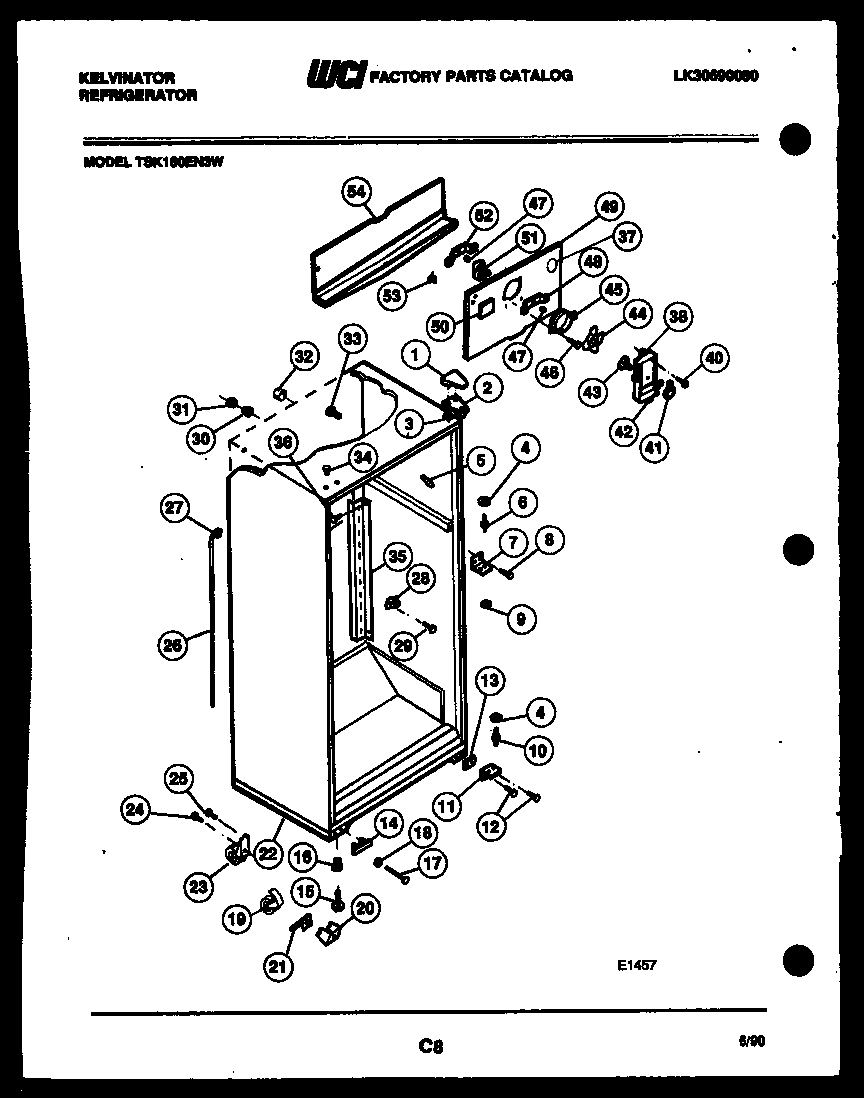

TSK160EN3F 03 – CABINET PARTS

Products

Position	Product
*13812	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*13812	PLUG, BUTTON, CABINET LINER (NI)
1	WCI 5303001666
2	BRACKET-UPPER HINGE
3	SHIM – UPPER HINGE
4	WASHER, .34 X .62 X .05, NYLON
5	WCI 5303202339
6	WCI 5308000184
7	BRACKET-CTR HINGE
8	WCI 5308012258
8A	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
8B	SPACER-MULLION MTG, STEEL
9	WCI 5308000186
10	5303001321 Frigidaire Refrigerator Lower Hinge Pin
11	HINGE BRACKET – BOTTOM
12	241710601 Frigidaire Refrigerator Screw
13	SHIM-LOWER HINGE
14	COVER-HOLE, LOWER HINGE
15	SCREW-LEVELING (4)
16	WCI 5308003584
17	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
18	WCI 5308011326
19	WCI 5308009760
20	SUPPORT, BASE (2)
21	WCI 5308009790
22	WCI 08010091
23	WCI 5308009773
24	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
26	WCI 5303210377
26A	5304455651 Frigidaire Refrigerator Screw
27	WCI 5303207353
28	WCI 5308000056
29	WCI 5303001361
30	WCI 5303001286
31	WCI 5303001287
32	TUBE-RUBBER
33	SUPPORT-COIL COVER
34	PLUG, COFFEE
35	CHANNEL, RH & LH
35A	WCI 5303015409
36	5304455852 Frigidaire Refrigerator Screw
36A	WCI 5308016568
37	5303208309 Frigidaire Refrigerator Plug Hole
38	WCI G163061-86
41	WCI 5308000081
42	Nut,push-on
43	DAMPER-FAN COVER
44	WCI 530800010
45	RING-FAN ORIFICE
46	218843801 Frigidaire Refrigerator Screw
47	G187559 Frigidaire Refrigerator Bushing
48	WCI 5303001226
49	WCI 3001527
49A	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
49B	5304455650 Frigidaire Refrigerator Screw
50	BUTTON – DECORATIVE PLUG
51	5300158289 Frigidaire Evaporator Fan Motor
52	WCI 5303001227
53	WCI 5308000107
54	TROUGH-DRAIN
