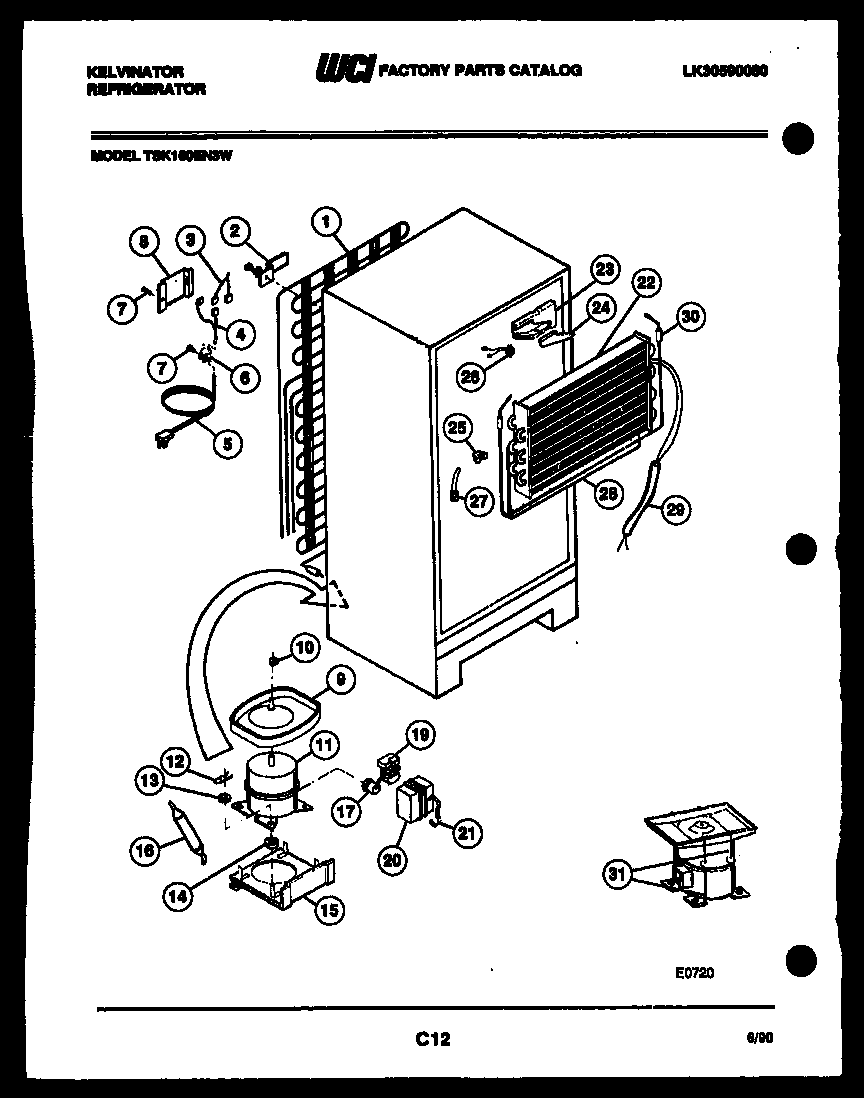

TSK160EN3F 05 – SYSTEM AND AUTOMATIC DEFROST PARTSadmin2025-04-26T09:49:16+00:00TSK160EN3F 05 – SYSTEM AND AUTOMATIC DEFROST PARTS
Products
| Position | Product |
|---|
| *13824 | HOT TUBE REPAIR KIT-SERVICE |
| 1 | WCI 5303001341 |
| 2B | WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED) |
| 2 | BRACKET-MTG (4) |
| 2A | 5308000039 Frigidaire Refrigerator Screw |
| 3 | HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED) |
| 4 | WIRING HARNESS, COMPRESSOR, |
| 5 | CORD-ELECTRIC POWER |
| 6 | 5303001199 Frigidaire Refrigerator Wiring Harness Clamp |
| 7 | 5304455651 Frigidaire Refrigerator Screw |
| 8 | WCI 5303001197 |
| 9 | PAN-DEFROST DRAIN, ORIG/SVCE COMPR |
| 9A | 5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction |
| 10 | Nut,lock `1/4-20 ,drain pan mtg |
| 11 | COMPRESSOR W/ ELECTRICALS-SERVICE |
| 12 | CLIP - COMPRESSOR MTG |
| 13 | WASHER-COMPR MTG |
| 14 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 15 | WCI 5308013663 |
| 16 | WCI 530800027 |
| 19 | 216594300 Frigidaire Refrigerator Starter |
| 21 | 5303006412 Frigidaire Refrigerator Cover Mounting Strap |
| 22 | EVAPORATOR |
| 23 | INSULATION BLOCK, RH |
| 24 | INSULATION PLUG, RH |
| 25 | INSULATION BLOCK, LH |
| 26 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 27 | 5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap |
| 28 | INSULATOR-EVAP, PLASTIC |
| 29 | WCI 5308000728 |
| 29A | 5308000133 Frigidaire Refrigerator Clamp |
| 30 | WCI 5308009754 |
| 31 | PAN RETAINER KIT, SERVICE |
