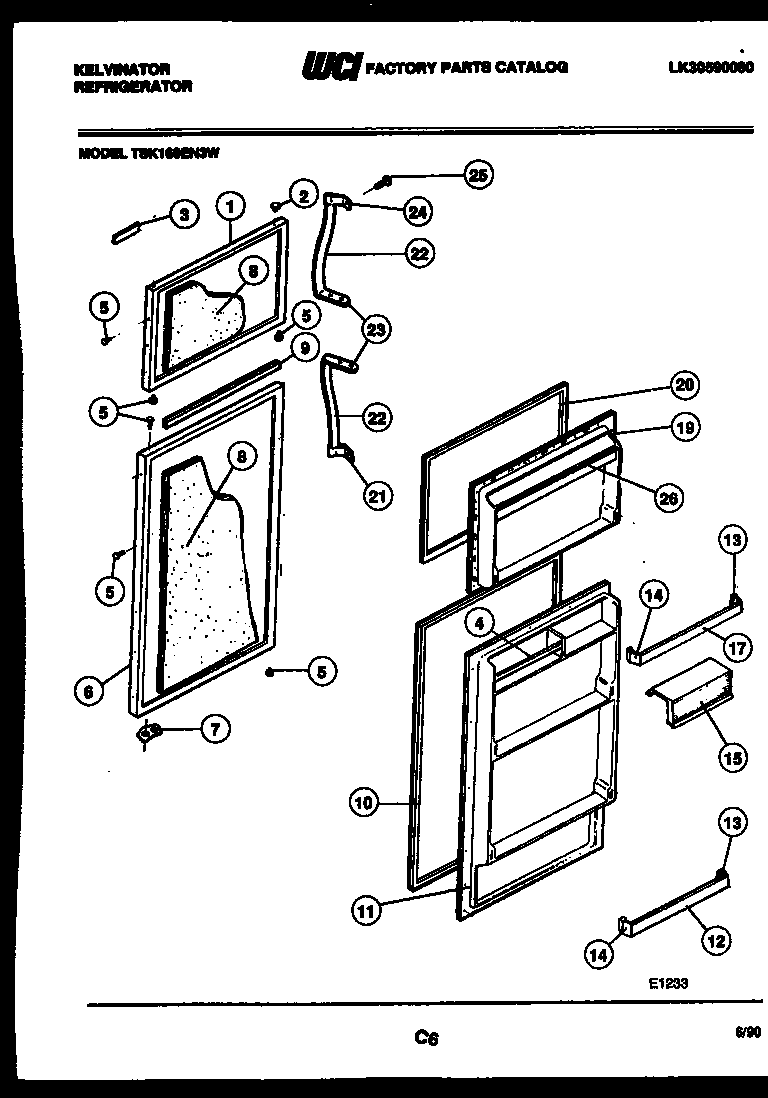

TSK160EN3V 02 – DOOR PARTS

Products

Position	Product
1	FREEZER DOOR-AVOCADO
2	BUTTON-AVOCADO
3	NAMEPLATE-ASSY
4A	TAPE, ADHESIVE, 60`` LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
4	TRIM, SHELF
5	BUTTON-AVOCADO
6	REFR DOOR-AVOCADO
6A	BEARING-HINGE
7	WCI 5308000255
8	INSULATION-BULK (NON-ILLUSTRATED)
9	WCI 5303209881
10	218730603 Frigidaire Door Gasket
11	WCI 5318359102
12	WCI G161019-77
13	WCI 5317828701
14	WCI 5317828401
15	DOOR, DAIRY
17	WCI G161019-76
19	WCI 5318358902
19A	218843801 Frigidaire Refrigerator Screw
20	WCI 5303001399
21	HANDLE, END-BOTTOM
22	WCI 5303201377
22A	TRIM INSERT-GRIP (2)
23	WCI 5318945301
24	HANDLE END-TOP
25	WCI 5308011745
26	WCI G170232-25
