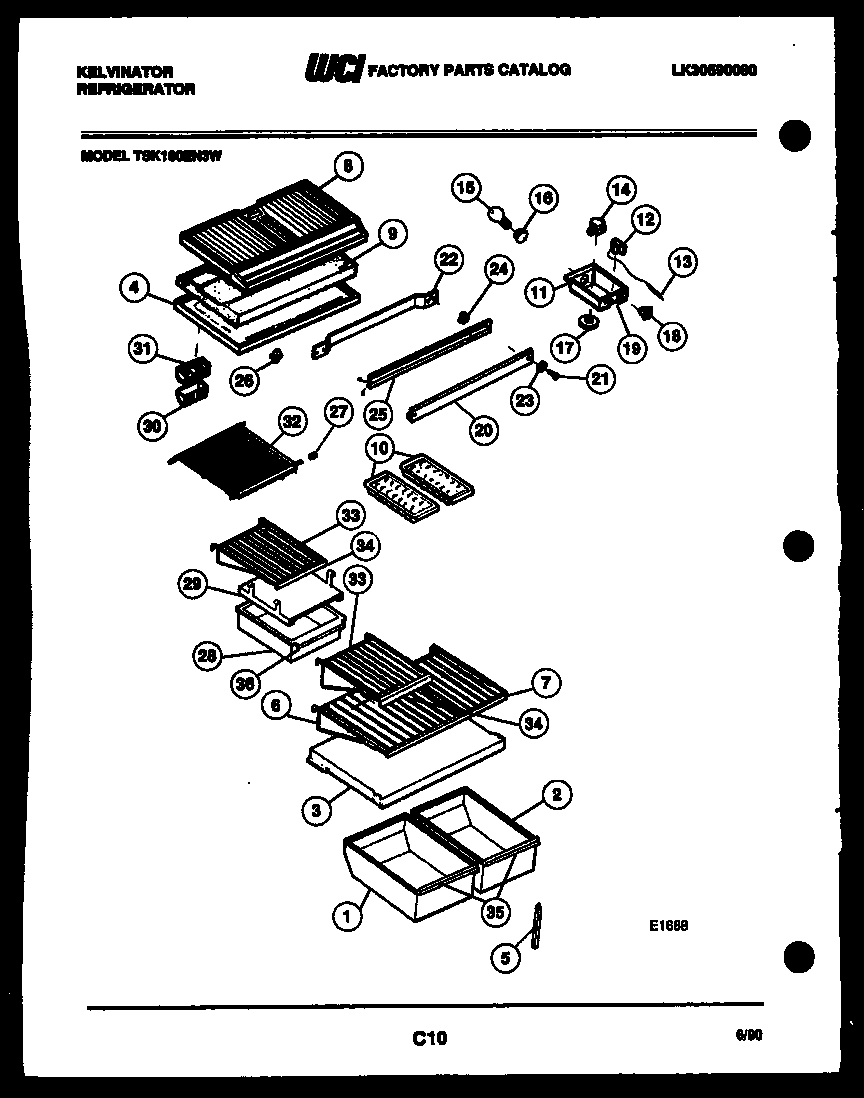

TSK160EN3V 04 – SHELVES AND SUPPORTSadmin2025-04-26T09:49:39+00:00TSK160EN3V 04 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| *13819 | CLIP-CANTILEVER SHLF |
| 1 | PAN, CRISPER LS |
| 2 | PAN, CRISPER RS |
| 3A | GASKET-COVER |
| 3 | WCI 5349001603 |
| 4A | WCI 5303001380 |
| 4 | TOP PANEL-REFR, W/ SNAP BUSHING |
| 5 | SUPPORT-CRISPER CVR, ADJUSTABLE |
| 6 | SHELF-CANTILEVER-FULL |
| 7 | WCI 5303210837 |
| 8 | WCI 5303001537 |
| 9 | WCI 5308009750 |
| 9 | HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED) |
| 10 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 11 | WCI 5317672203 |
| 11A | 5304455650 Frigidaire Refrigerator Screw |
| 12 | WCI 5303200810 |
| 12A | WCI 5303001260 |
| 13 | TUBE |
| 14A | 5304455649 Frigidaire Refrigerator Screw |
| 14 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16 | SOCKET-LIGHT/LAMP |
| 17 | WCI 5308010011 |
| 18 | SWITCH-ENERGY SAVER, SLIDE TYPE |
| 19 | LABEL |
| 20 | WCI 3916135 |
| 21 | WCI 5308012258 |
| 22 | WCI 5308003604 |
| 23 | WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI) |
| 24 | SPACER-MULLION MTG, STEEL |
| 25 | WCI 5308017408 |
| 26 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 27 | END CAP-SHELF,PROTECTOR |
| 28 | PAN-MEAT |
| 29 | WCI 5308000263 |
| 30 | COVER - AIR DEFLECTOR |
| 31 | DEFLECTOR-AIR |
| 32C | 5304500407 Frigidaire Refrigerator Shelf Mounting Grommet |
| 32A | WCI 5303210836 |
| 32B | 5304509705 Frigidaire Refrigerator Grommet |
| 32 | WCI 5303209642 |
| 33 | WCI 5303210840 |
| 34 | WCI 5303210838 |
| 35 | TRIM-SMALL PAN |
| 36 | WCI G161013-67 |
