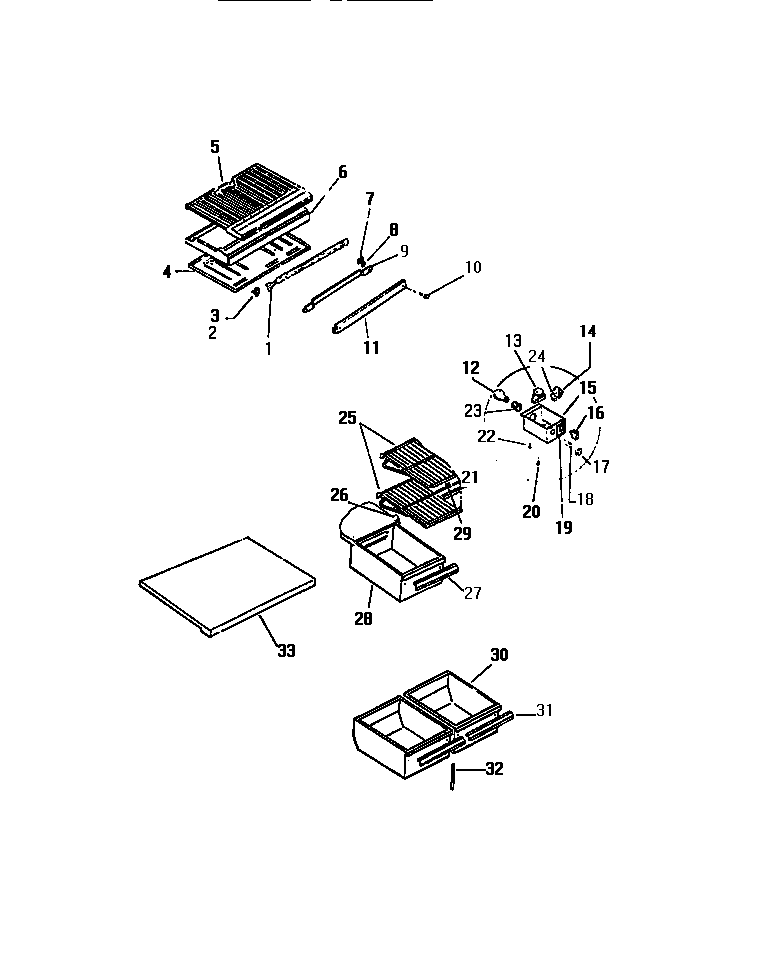

TSK180AN6F 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
*55747WCI G183100-19
*55746SERVICE DATA SHEET
*55742HARNESS, WIRING
*55741BUTTON, PLUG, LINER (2)
*55740BUTTON, PLUG, ICE MAKER AND FREEZER SHELF MOUNTING HOLES
*55739BUTTON, PLUG, ICE MAKER HARNESS
*55738TAPPING PLATE (2)
*557445304509705 Frigidaire Refrigerator Grommet
*55743WCI G186589
*55745BUTTON, PLUG, WATER INLET
1WCI G177254
2SCREW (5)
35309918806 Frigidaire Refrigerator Light Switch Door
4WCI G490021-0
5BOTTOM, FC
6DIVIDER, CENTER
7SPACER, MULLION (2)
8WASHER (2)
9STRAP, MULLION MOUNTING
10SCREW, BRACKET MOUNTING (4)
11WCI G180373-10
12WCI G186723
13215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
14COLD CONTROL
15WCI G174655-15
16SWITCH SLIDE
17KNOB CONTROL
18WCI G107080
19WCI G178294-01
205304455649 Frigidaire Refrigerator Screw
21TRIM (4)
225304455650 Frigidaire Refrigerator Screw
23SOCKET LIGHT
24TUBE
25WCI G177390-03
26WCI G177106-01
27TRIM, MEAT KEEPER
28WCI G177623-01
29CLIP-TRIM (NON-ILLUSTRATED)
30WCI G178270-01
31TRIM, CRISPER (2)
32SUPPORT, CRISPER COVER
33WCI G178216-01
