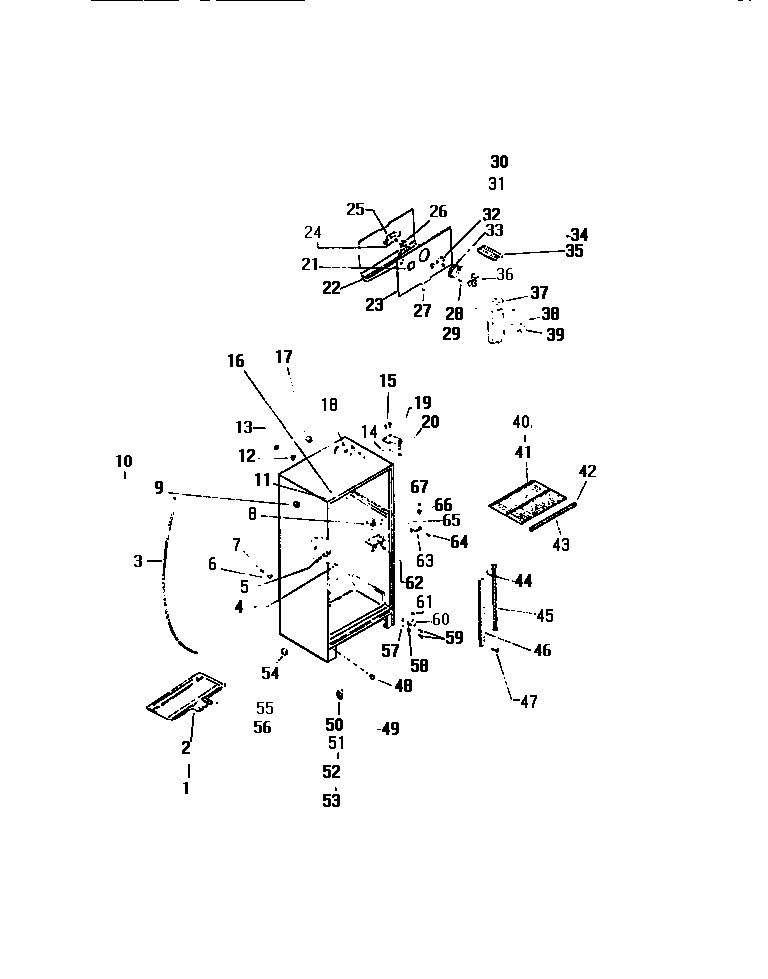

TSK180AN6T 03 – CABINET W/ FAN ASSEMBLY

Products

PositionProduct
*55734COVER HINGE, WHEAT
1NUT, LOCK
2DEFROST PAN
3TUBE, DRAIN
5SPOUT DRAIN TUBE
6WCI G101747
8DEFLECTOR AIR
9SPACER, FREEZER (2)
10SCREW, CHANNEL MOUNTING (3)
12WCI G174733
13WCI G174734
14WCI G183861
15241710601 Frigidaire Refrigerator Screw
16WCI G174747-09
17TUBE, INSULATION (2)
18WCI G163669
19BRACKET, TOP HINGE
20WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
21BUTTON DECORATIVE PLUG
22WCI G177534
23WCI G177259
24G187559 Frigidaire Refrigerator Bushing
25BRACKET, REAR MOTOR MOUNTING
265300158289 Frigidaire Evaporator Fan Motor
27216858001 Frigidaire Refrigerator Screw
285304455650 Frigidaire Refrigerator Screw
29DAMPER FAN COVER
30WCI G164571
315304455651 Frigidaire Refrigerator Screw
32BRACKET, FRONT MOTOR MOUNTING
33RING, FAN ORIFICE
34NUT, ORIFICE (2)
35215667501 Frigidaire Refrigerator Ice Tray Primary
365308000010 Frigidaire Refrigerator Evaporator Fan Blade
37WCI G163061-36
38NUT, DAMPER MOUNTING
39WCI G162663-11
405304509705 Frigidaire Refrigerator Grommet
405304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41WCI G177059-02
42WCI G166495-01
43WCI G172434-20
445304455852 Frigidaire Refrigerator Screw
45CHANNEL, SHELF (2)
46CHANNEL, CENTER SHELF, MOUNTING
47WCI G163989
48WCI G166912
49WASHER
50ROLLER FRONT, ADJUSTABLE (2)
51SPRING-ROLLER (2)
52BOLT-ROLLER (2)
53SUPPORT, ROLLER (2)
54ROLLER, REAR (2)
55BOLT ROLLER (2)
565308000039 Frigidaire Refrigerator Screw
57SHIM, HINGE
58BRACKET, HINGE, LOWER
605303001321 Frigidaire Refrigerator Lower Hinge Pin
62WCI G162178
63BRACKET, HINGE CENTER
64SCREW, MULLION MOUNTING (2)
65SHIM, HINGE
66WCI G142220
67WCI G103903
