TSK180AN6T 05 – SYSTEM

Products

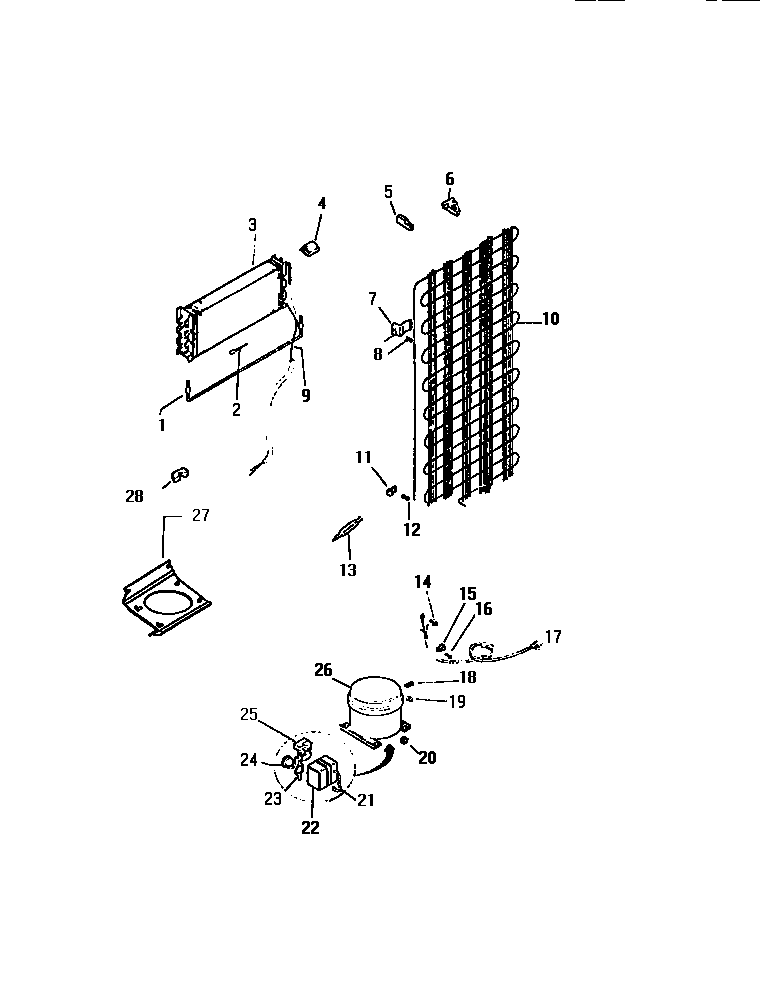

Position	Product
*55749	COVER WIRING
*55752	WCI G179684-09
*55756	RING, SEAL (NON-ILLUSTRATED)
*55748	TYPE, TRIM
*55755	WCI G101747
*55750	NUT, ORIFICE (2)
*55757	WCI G179024
1	5317842502 Frigidaire Defrost Heater
2	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3	EVAPORATOR
4	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5	PLUG, EVAPORATOR INSULATION BLOCK, R H
6	BLOCK, EVAPORATOR, RH
7	BRACKET-CONDENSER MOUNTING (4)
9	HEAT EXCHANGER
10	WCI G162739
13	5303305677 Frigidaire Replacement Filter Dryer Filters
14	5308000039 Frigidaire Refrigerator Screw
15	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
16	5304455651 Frigidaire Refrigerator Screw
17	CORD, SERVICE
18	CLIP, COMPRESSOR MOUNTING (4)
19	WASHER, COMPRESSOR MOUNTING (4)
20	218513300 Frigidaire Refrigerator Compressor Mount Grommet
21	STRAP-COVER
22	WCI G185792
23	CLIP, OVERLOAD
24	WCI G185797
25	WCI G182225-12
26	COMPRESSOR
27	PLATE, COMPRESSOR MOUNTING
28	BLOCK, EVAPORATOR, LH
