TSK180AN6W 02 – DOOR

TSK180AN6W 02 – DOOR

Written by

in

TSK180AN6W 02 – DOOR

Products

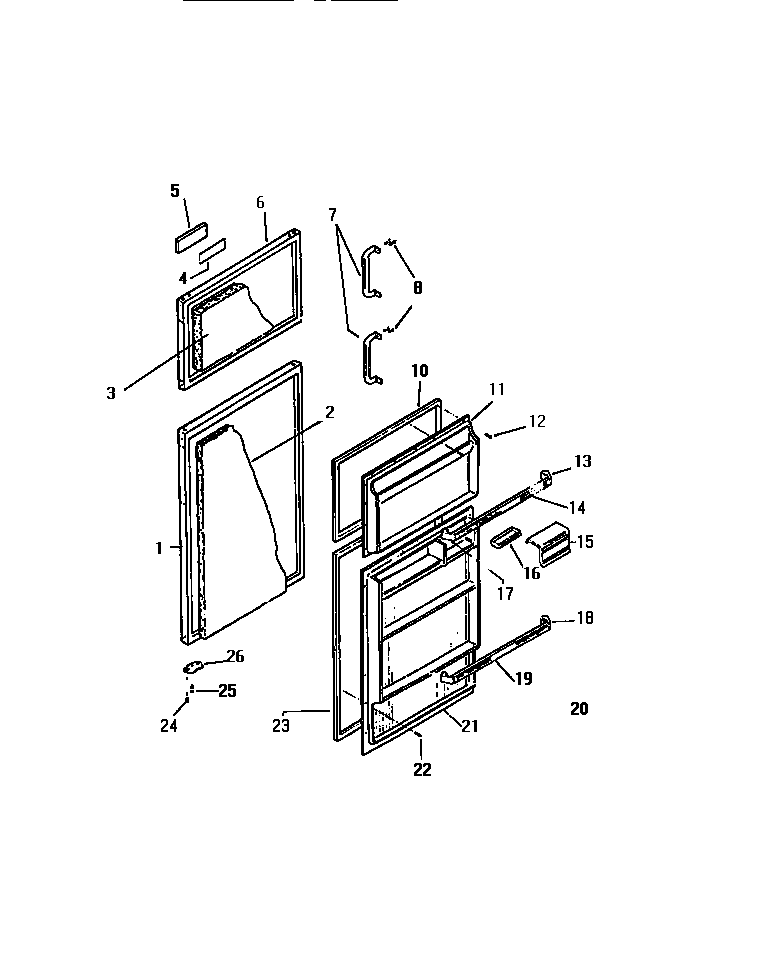

PositionProduct
*55727240494001 Frigidaire Refrigerator Plug Button
*55769WCI G172723-01
*55760WCI G162991-29
*55764WCI G141624-16
*55763TRIM-SHELF
*55767WCI G178282-01
*55766WCI G178293-01
*55722WCI G169332-01
*55765WCI G162892-07
*55761TRIM, RACK (ORDER TAPE)
*55762WCI G141624-24
1WCI K178279
2INSULATION, LOWER EXTERIOR DOOR
3INSULATION, UPPER EXTERIOR DOOR
4WCI G162991-04
5NAMEPLATE FRAME
6PANEL-OUTER-WHTE
7WCI G172612-03
8WCI G185566
10FC DOOR GASKET, MAGNETIC
11PANEL-INNER FRZR
14WCI G162939-28
15WCI G162713-05
165308000716 Frigidaire Refrigerator Dish
17SUPPORT LS (3)
18SUPPORT RS (3)
19WCI G162939-29
20WCI G17884-01
21PANEL-INNER REFR.
225304455651 Frigidaire Refrigerator Screw
23PC DOOR GASKET, MAGNETIC
24WCI G162889
25SCREW, STOP MOUNTING (2)
26STOP, DOOR. PC & FC (2)
