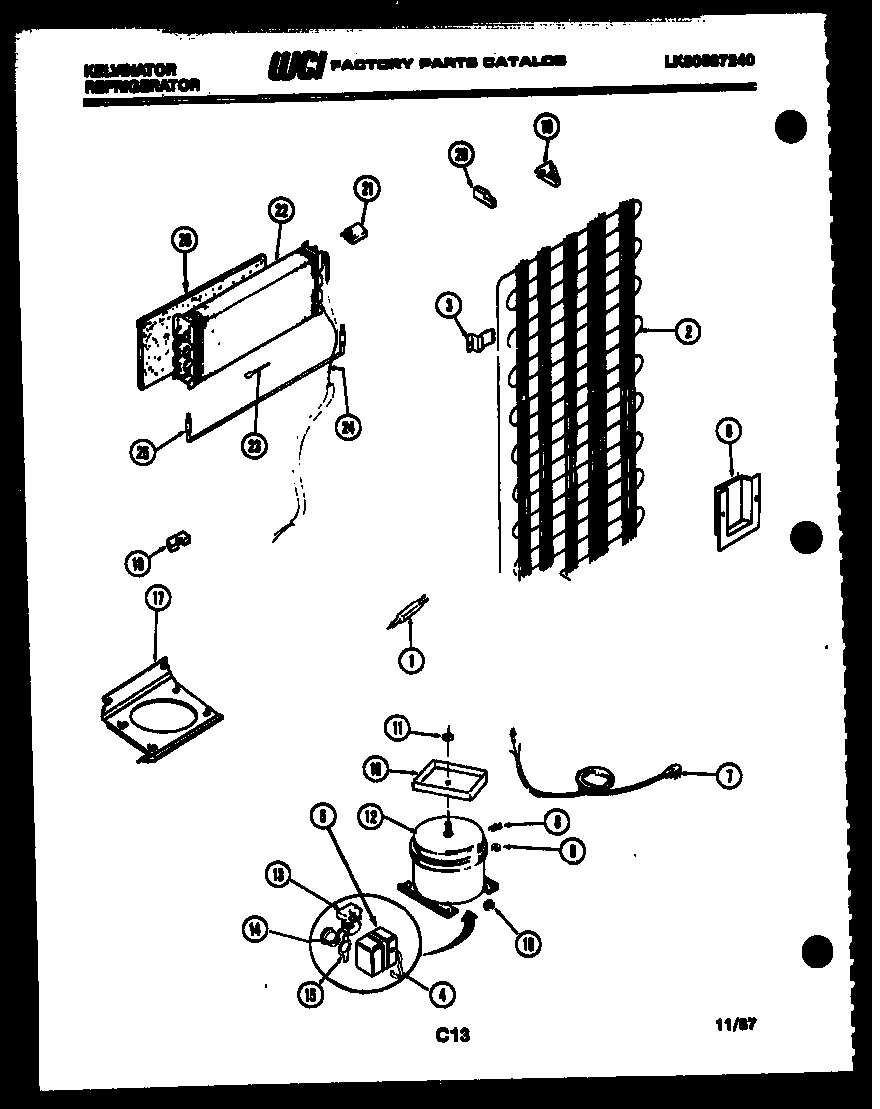

TSK180AN7F 05 – SYSTEM AND AUTOMATIC DEFROST PARTSadmin2025-04-26T09:48:53+00:00TSK180AN7F 05 – SYSTEM AND AUTOMATIC DEFROST PARTS
Products
| Position | Product |
|---|
| *17793 | WCI G167234 |
| *17790 | HARNESS-COMPRESSOR |
| *17792 | HOT TUBE REPAIR KIT |
| *17792 | 5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction |
| 1 | 5303305677 Frigidaire Replacement Filter Dryer Filters |
| 2 | WCI G162739 |
| 3 | BRACKET-CONDENSER MOUNTING (4) |
| 4 | 5303006412 Frigidaire Refrigerator Cover Mounting Strap |
| 6 | WCI G183584 |
| 7 | CORD, SERVICE |
| 8 | CLIP, COMPRESSOR MOUNTING (4) |
| 9 | WASHER, COMPRESSOR MOUNTING (4) |
| 10 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 11 | NUT, LOCK |
| 12 | COMPRESSOR WITH ELECTRICALS |
| 13 | WCI G182225-11 |
| 14 | WCI G185810 |
| 15 | RETAINER, OVERLOAD |
| 16 | DEFROST PAN & NUT |
| 17 | PLATE |
| 18 | BLOCK, LEFT SIDE |
| 19 | BLOCK, EVAPORATOR, RH |
| 20 | PLUG, EVAPORATOR INSULATION BLOCK, R H |
| 21 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 22 | EVAPORATOR |
| 23 | 5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap |
| 24 | HEAT, EXCHANGE |
| 25 | 5317842502 Frigidaire Defrost Heater |
| 26 | INSULATOR |
