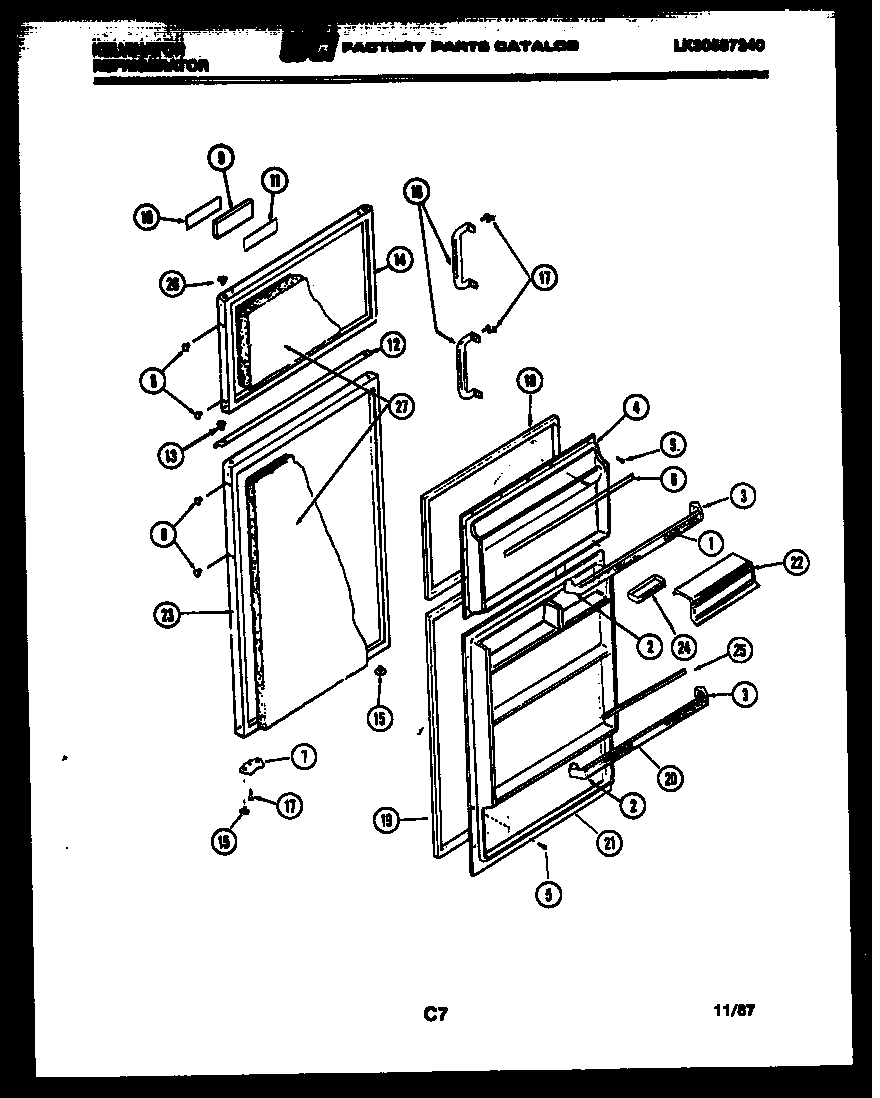

TSK180AN7V 02 – DOOR PARTS

Products

Position	Product
1	WCI G162939-28
2	SUPPORT LS (3)
3	SUPPORT RS (3)
4	PANEL-INNER FRZR
5	218843801 Frigidaire Refrigerator Screw
6	TRIM, RACK (ORDER TAPE)
7A	STOP, DOOR. PC & FC (2)
8	WCI G162977-08
9	NAMEPLATE FRAME
10	WCI G178282-01
12	WCI G178293-01
13	WCI G162892-14
14	PANEL-OUTER-AVOC
15	BEARING, HINGE (3)
16	WCI G172612-03
17	WCI G185566
18	GASKET
19	GASKET
20	WCI G162939-29
21	PANEL-INNER REFR.
22	WCI G162713-08
23	PANEL-OUTER-AVOC.
24	5308000716 Frigidaire Refrigerator Dish
25	TRIM-SHELF
25A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
26	WCI G169332-08
27	WCI G89643
