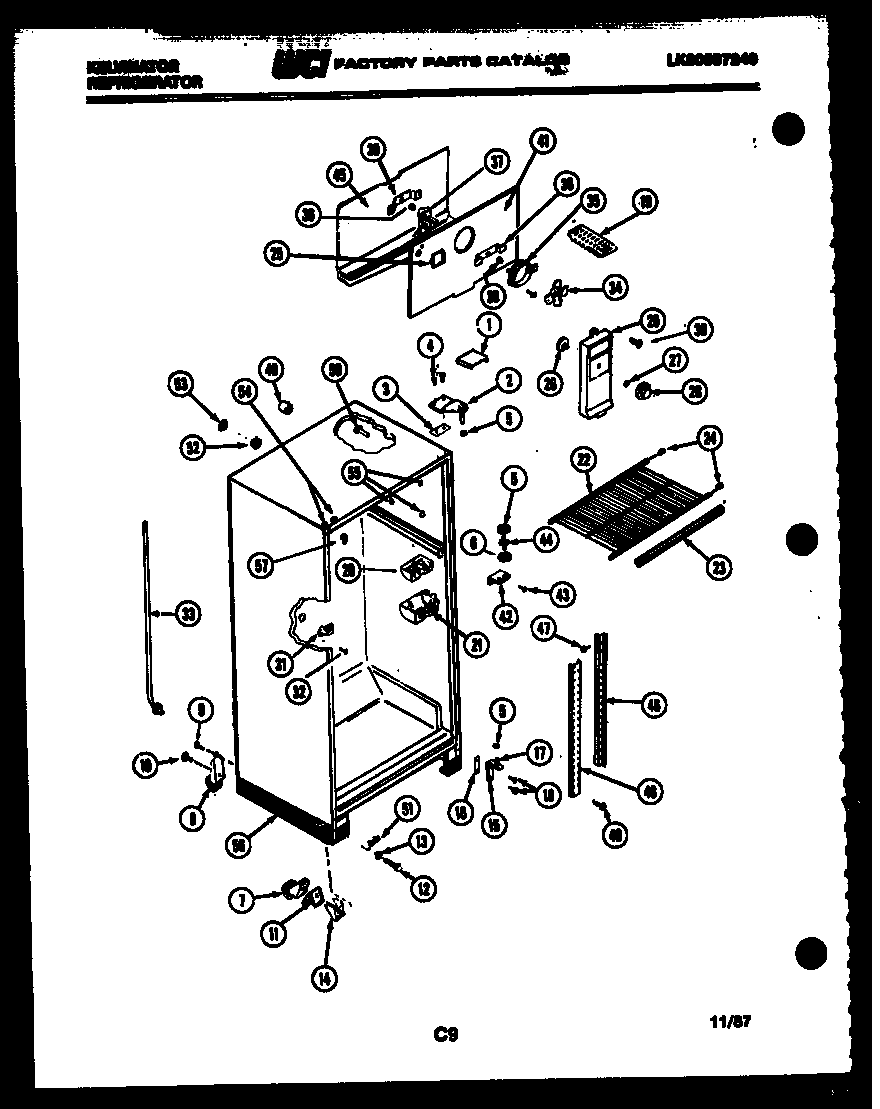

TSK180AN7V 03 – CABINET PARTS

TSK180AN7V 03 – CABINET PARTS

Written by

in

TSK180AN7V 03 – CABINET PARTS

Products

PositionProduct
*17746BUTTON, PLUG, LINER (2)
*17747BUTTON, LINER
*17747TAPPING, PLATE (2)
1COVER, TOP HINGE, AVOCADO
2BRACKET, TOP HINGE
3WCI G183861
4241710601 Frigidaire Refrigerator Screw
5WCI G103903
6WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
7ROLLER FRONT, ADJUSTABLE (2)
8ROLLER, REAR (2)
10BOLT ROLLER (2)
11SPRING-ROLLER (2)
12BOLT-ROLLER (2)
13WASHER
14SUPPORT, ROLLER (2)
15BRACKET, HINGE, LOWER
16SHIM, HINGE
175303001321 Frigidaire Refrigerator Lower Hinge Pin
19215667501 Frigidaire Refrigerator Ice Tray Primary
20DEFLECTOR AIR
21WCI G162178
22WCI G177059-02
23WCI G172434-20
24WCI G166495-01
25BUTTON DECORATIVE PLUG
26DAMPER FAN COVER
27NUT, DAMPER MOUNTING
28WCI G162663-11
29WCI G163061-36
305304455650 Frigidaire Refrigerator Screw
31SPOUT DRAIN TUBE
32PIN PUSH SPOUT (2)
33ARING, SEAL (NON-ILLUSTRATED)
33TUBE, DRAIN
345308000010 Frigidaire Refrigerator Evaporator Fan Blade
35RING, FAN ORIFICE
36G187559 Frigidaire Refrigerator Bushing
375300158289 Frigidaire Evaporator Fan Motor
38WCI G185302
39AWCI G164571
39WCI G185303
39B5304455651 Frigidaire Refrigerator Screw
40TUBE, INSULATION (2)
41ANUT, ORIFICE (2)
41WCI G177529
42AWASHER (2)
42BRACKET, HINGE CENTER
43SCREW, BRACKET MOUNTING (4)
44WCI G142220
45WCI G177534
46CHANNEL, SHELF (2)
475304455852 Frigidaire Refrigerator Screw
48CHANNEL, CENTER SHELF, MOUNTING
49SCREW (3) (NON-ILLUSTRATED)
50WCI G163669
51WCI G166912
52WCI G174733
53WCI G174734
54WCI G174747-08
555304509705 Frigidaire Refrigerator Grommet
55A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
56WCI G490004-02
57TRIM CORNER (4), AVOCADO
