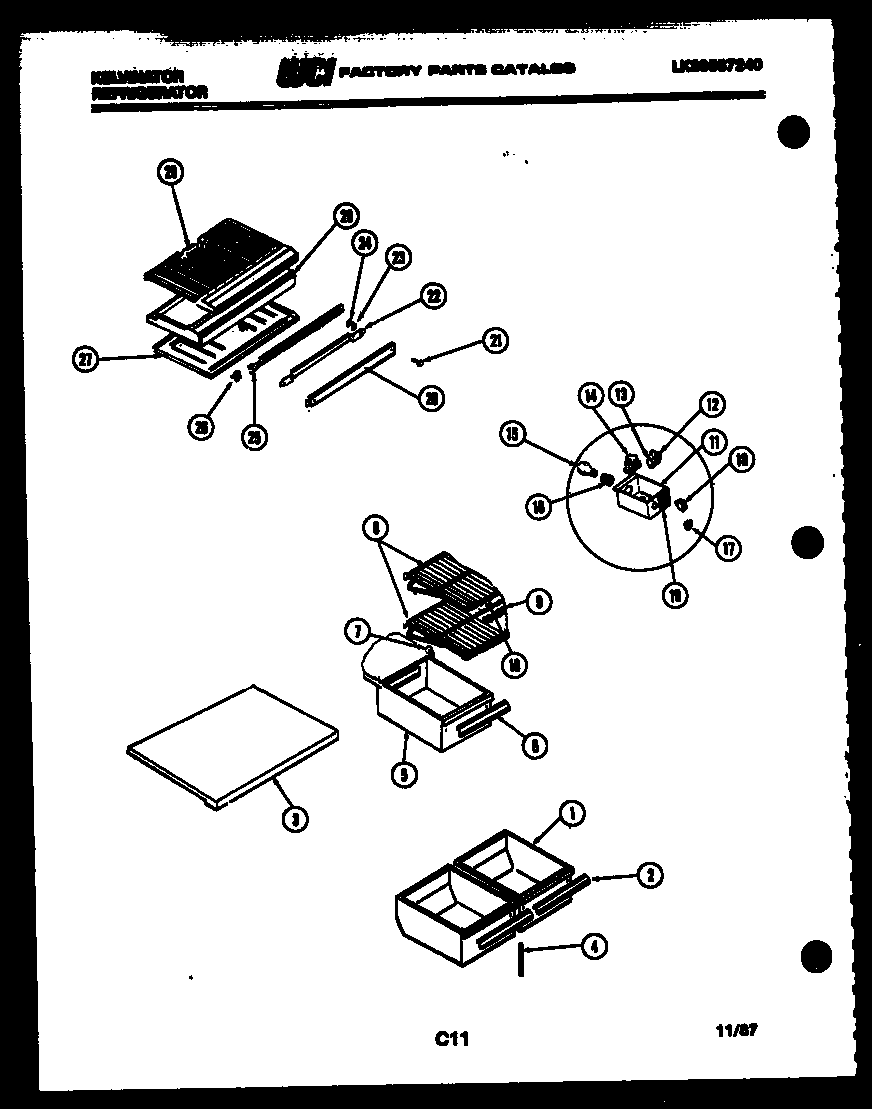

TSK180AN7W 04 – RACKS AND TRAYSadmin2025-04-26T09:50:12+00:00TSK180AN7W 04 – RACKS AND TRAYS
Products
| Position | Product |
|---|
| *17772 | HARNESS, WIRING |
| 1 | WCI G178270-01 |
| 2 | TRIM, CRISPER (2) |
| 3 | WCI G178216-01 |
| 4 | SUPPORT, CRISPER COVER |
| 5 | WCI G177623-01 |
| 6 | TRIM, MEAT KEEPER |
| 7 | WCI G177106-01 |
| 8 | WCI G177390-03 |
| 9 | TRIM (4) |
| 10 | CLIP, SHELF (8) |
| 11 | WCI G174655-15 |
| 11A | 5304455650 Frigidaire Refrigerator Screw |
| 12A | WCI G107080 |
| 12 | COLD CONTROL |
| 13 | TUBE |
| 14A | 5304455649 Frigidaire Refrigerator Screw |
| 14 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16 | SOCKET LIGHT |
| 17 | KNOB CONTROL |
| 18 | SWITCH SLIDE |
| 19 | WCI G178294-01 |
| 20 | MULLION, WHITE |
| 21 | SCREW, BRACKET MOUNTING (4) |
| 22 | STRAP, MULLION MOUNTING |
| 23 | WASHER (2) |
| 24 | SPACER, MULLION (2) |
| 25 | WCI G177254 |
| 26 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 27A | SCREW (5) |
| 27 | TOP, PC |
| 28 | DIVIDER, CENTER |
| 29 | BOTTOM, FC |
