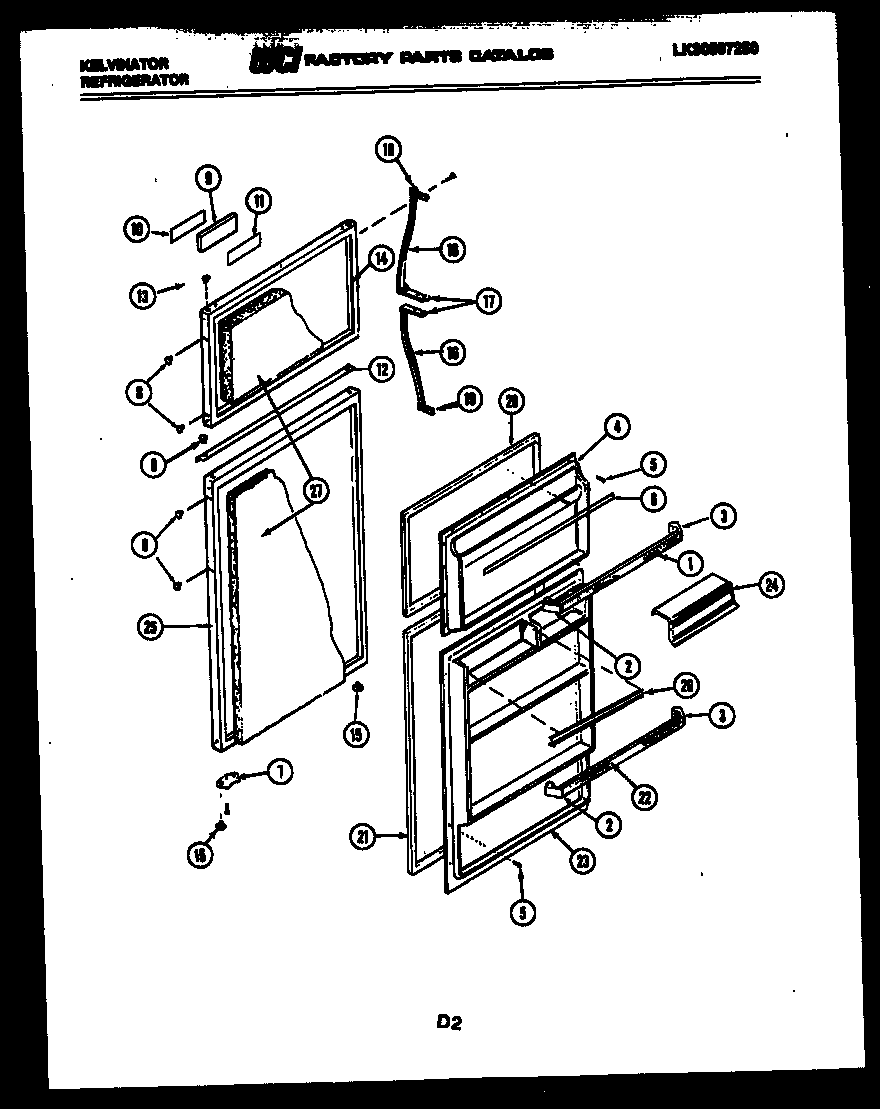

TSK180EN0T 02 – DOOR PARTS

Products

Position	Product
1	WCI 3015060
2	SUPPORT LS (3)
3	SUPPORT RS (3)
4	INNER PANEL
5	218843801 Frigidaire Refrigerator Screw
6	WCI 3015063
7A	STOP, DOOR. PC & FC (2)
8	WCI G162977-09
9	NAMEPLATE FRAME
10	LABEL-NAMEPLATE
12	TRIM-REFRIGERATOR DOOR
13	WCI G169332-09
14	WCI G189570-09
15	BEARING, HINGE (3)
16A	WCI G189456-01
16	WCI G189454-02
17	END-HANDLE (2)
18	WCI G189452-01
19	WCI G189451-01
19A	WCI G185566
21	GASKET
22	WCI 3015061
23	INNER PANEL
24	DOOR, DAIRY
25	WCI G189576-09
26A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
26	WCI 3015603
27	WCI G89643
