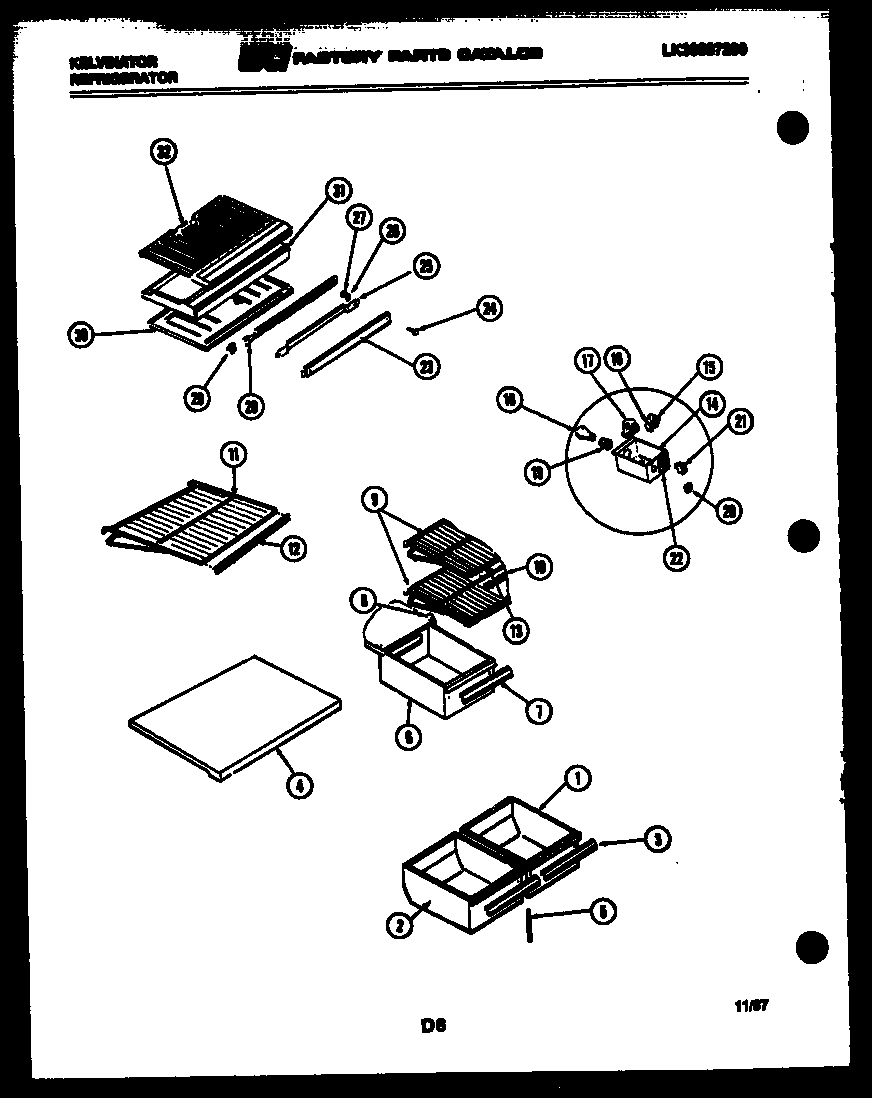

TSK180EN0V 04 – RACKS AND TRAYSadmin2025-04-26T09:49:47+00:00TSK180EN0V 04 – RACKS AND TRAYS
Products
| Position | Product |
|---|
| *18440 | HARNESS, WIRING |
| 1 | PAN-CRISPER |
| 2 | PAN-CRISPER |
| 3 | TRIM (2) |
| 4A | GASKET COVER (NON-ILLUSTRATED) |
| 4 | COVER-CRISPER |
| 5 | SUPPORT, CRISPER COVER |
| 6 | WCI G177623-06 |
| 7 | WCI G161013-67 |
| 8 | WCI G177106-01 |
| 9 | WCI G177390-03 |
| 10 | TRIM, SHELF, FRONT, 13-7/16`` (4) |
| 11 | SHELF FULL |
| 12 | TRIM-SHELF FRONT (3) |
| 13 | CLIP, SHELF (8) |
| 14A | 5304455650 Frigidaire Refrigerator Screw |
| 14 | WCI G176722-03 |
| 15 | COLD CONTROL |
| 15A | WCI G107080 |
| 16 | TUBE |
| 17A | 5304455649 Frigidaire Refrigerator Screw |
| 17 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 18 | 316538904 Frigidaire Oven Lamp Light |
| 19 | SOCKET LIGHT |
| 20 | KNOB |
| 21 | SWITCH SLIDE |
| 22 | LABEL |
| 23 | WCI G180373-08 |
| 24 | SCREW, BRACKET MOUNTING (4) |
| 25 | STRAP, MULLION MOUNTING |
| 26 | WASHER (2) |
| 27 | SPACER, MULLION (2) |
| 28 | WCI G177254 |
| 29 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 30A | SCREW (5) |
| 30 | TOP, PC |
| 31 | DIVIDER, CENTER |
| 32 | BOTTOM, FC |
