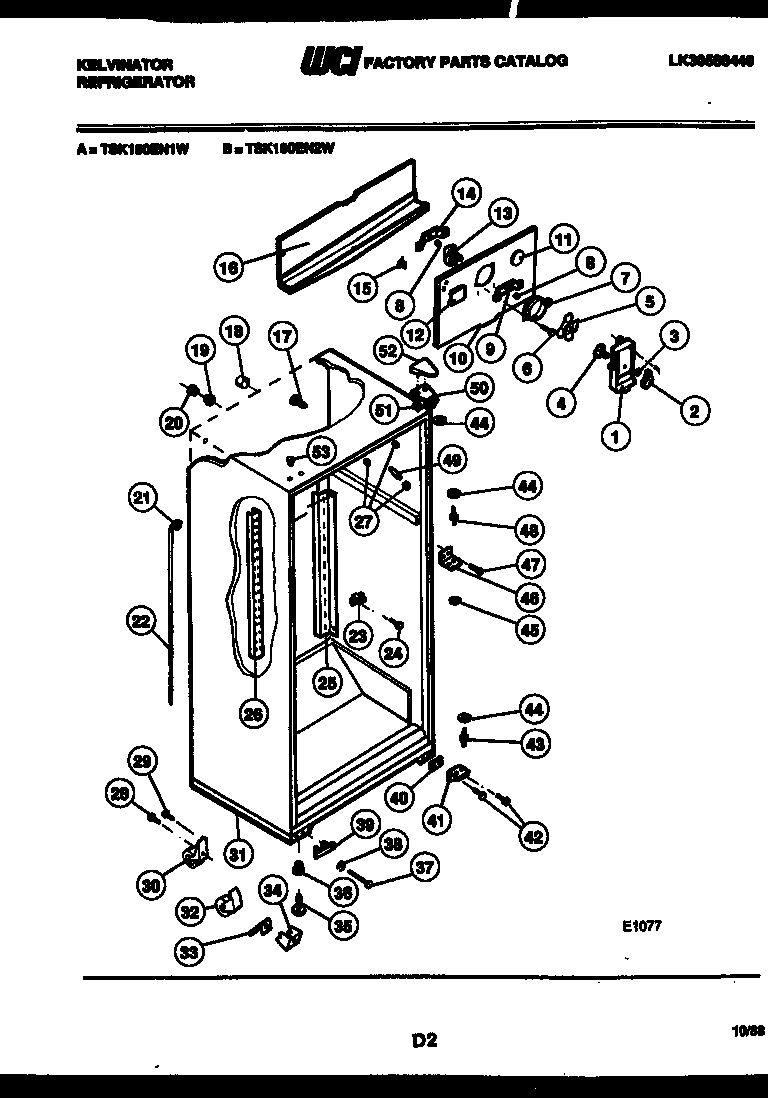

TSK180EN1F 03 – CABINET PARTS

Products

Position	Product
*54527	BUTTON, LINER
1A	5304455650 Frigidaire Refrigerator Screw
1	WCI G163061-86
2	KNOB-DAMPER
3	NUT, DAMPER MOUNTING
4	DAMPER FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING, FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI G185302
10	WCI G177529
10A	NUT, ORIFICE (2)
11	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12	BUTTON DECORATIVE PLUG
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI G185303
15	WCI G164571
15A	5304455651 Frigidaire Refrigerator Screw
16	WCI G177534
17	WCI G163669
18	TUBE, INSULATION (2)
19	WCI G174733
20	WCI G174734
21	RING, SEAL (NON-ILLUSTRATED)
22	TUBE, DRAIN
23	SPOUT DRAIN TUBE
24	PIN PUSH SPOUT (2)
25A	5304455852 Frigidaire Refrigerator Screw
25	CHANNEL, SHELF (2)
26	WCI G189341
26A	SCREW (3) (NON-ILLUSTRATED)
27	5304509705 Frigidaire Refrigerator Grommet
27A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
28	BOLT ROLLER (2)
30	ROLLER, REAR (2)
31	WCI G490004-02
32	ROLLER FRONT, ADJUSTABLE (2)
33	SPRING-ROLLER (2)
34	SUPPORT, ROLLER (2)
35	LEG-LEVELING (2)
36	NUT, ANCHOR (2)
37	BOLT-ROLLER (2)
38	WASHER
39	WCI G166912
40A	TAPPING, PLATE (2)
40	SHIM, HINGE
41	BRACKET-HINGE
43	5303001321 Frigidaire Refrigerator Lower Hinge Pin
44	WCI G103903
45	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
46	BRACKET, HINGE CENTER
47A	WASHER (2)
47	SCREW, BRACKET MOUNTING (4)
48	WCI G142220
49	WCI G179684-10
50A	241710601 Frigidaire Refrigerator Screw
50	BRACKET, TOP HINGE
51	WCI G183861
52	COVER HINGE, COFFEE
53	WCI G174747-10
