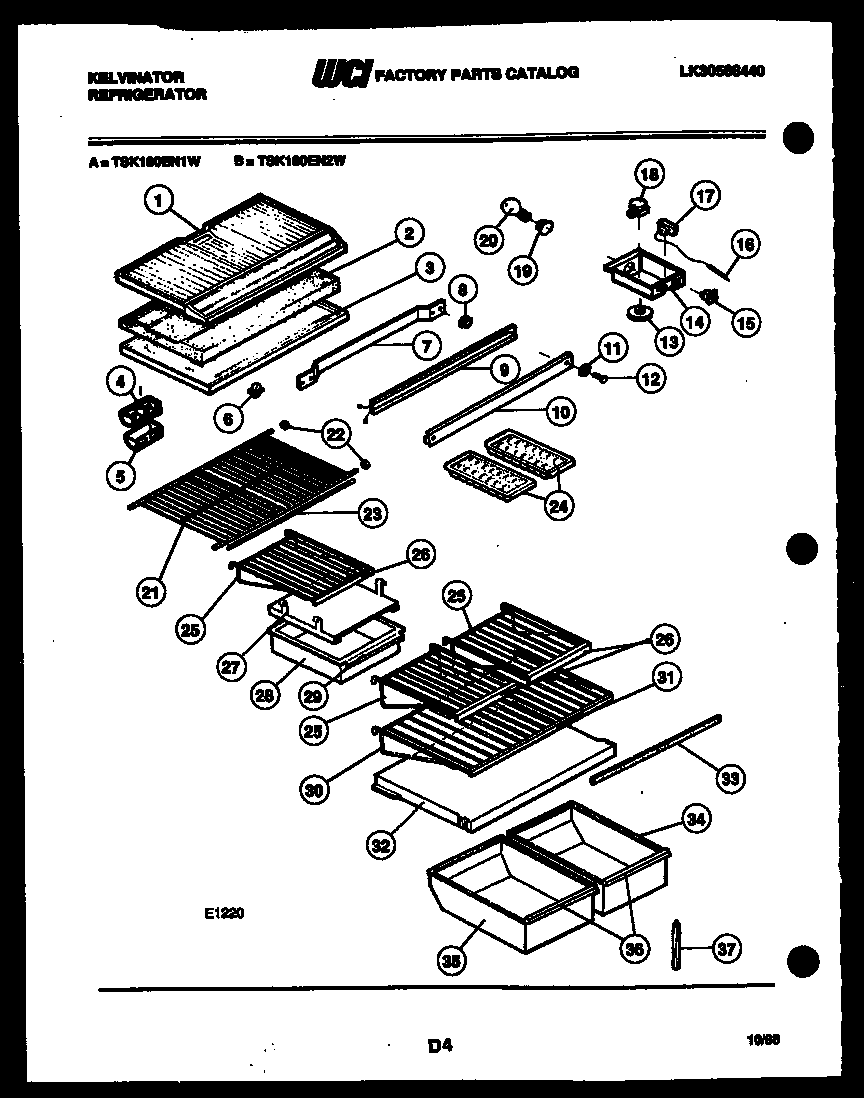

TSK180EN2D 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	BOTTOM, FC
2A	HARNESS, WIRING
2	DIVIDER, CENTER
3A	SCREW (5)
3	TOP-REFRIGERATOR
4	DEFLECTOR AIR
5	WCI G162178
6	5309918806 Frigidaire Refrigerator Light Switch Door
7	STRAP, MULLION MOUNTING
8	SPACER (NON-ILLUSTRATED)
9	WCI 3018916
10	WCI 3200370
11	WASHER (2)
12	SCREW, BRACKET MOUNTING (4)
13	KNOB
14B	5304455650 Frigidaire Refrigerator Screw
14	WCI G176722-03
14A	LABEL
15	SWITCH SLIDE
16	TUBE
17A	WCI G107080
17	WCI 3200810
18	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
18A	5304455649 Frigidaire Refrigerator Screw
19	SOCKET LIGHT
20	316538904 Frigidaire Oven Lamp Light
21	WCI G177059-02
22	WCI G166495-01
23	TRIM, SHELF, FREEZER
24	215667501 Frigidaire Refrigerator Ice Tray Primary
25	WCI G177390-03
26	TRIM, SHELF, FRONT, 13-7/16“ (4)
27	WCI G177106-01
28	WCI G177623-06
29	WCI G161013-67
30	SHELF FULL
31	TRIM-SHELF FRONT (3)
32	COVER-CRISPER
33	GASKET COVER (NON-ILLUSTRATED)
34	PAN-CRISPER
35	PAN-CRISPER
36	TRIM (2)
37	SUPPORT, CRISPER COVER
