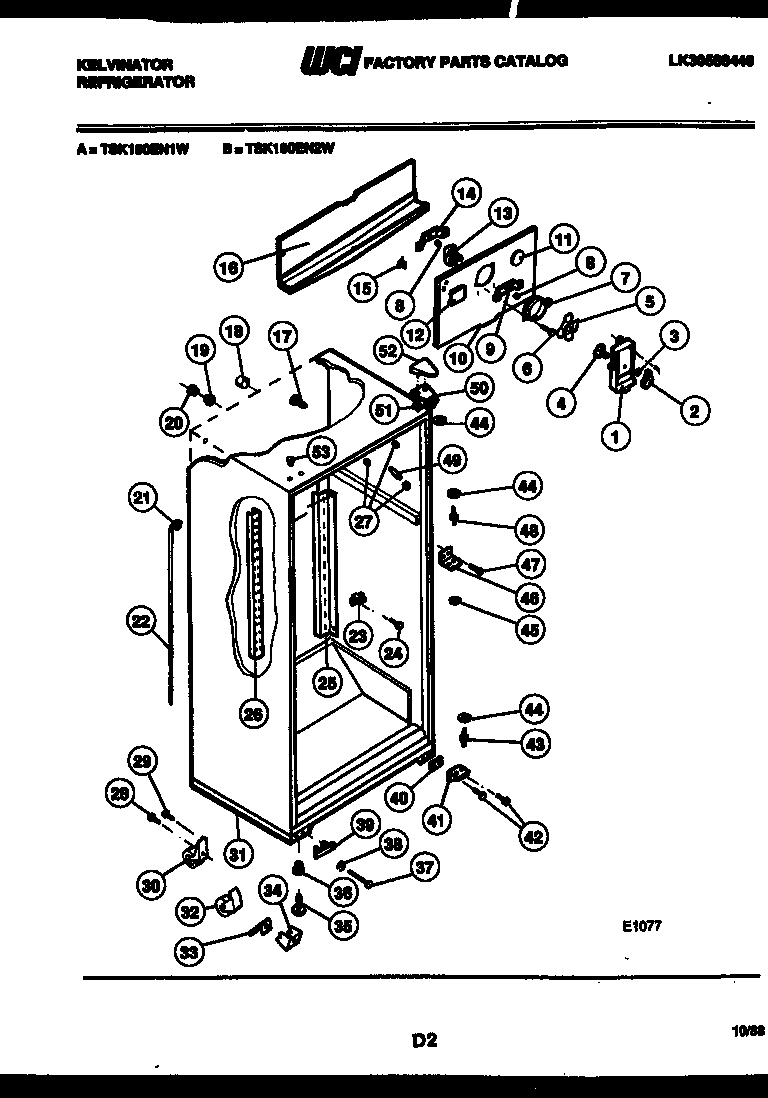

TSK180EN2V 03 – CABINET PARTS

Products

PositionProduct
*54527BUTTON, LINER
1A5304455650 Frigidaire Refrigerator Screw
1WCI G163061-86
2KNOB-DAMPER
3NUT, DAMPER MOUNTING
4DAMPER FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING, FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI G185302
10WCI G177529
10ANUT, ORIFICE (2)
11PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12BUTTON DECORATIVE PLUG
135300158289 Frigidaire Evaporator Fan Motor
14WCI G185303
15WCI G164571
15A5304455651 Frigidaire Refrigerator Screw
16WCI G177534
17WCI G163669
18TUBE, INSULATION (2)
19WCI G174733
20WCI G174734
21RING, SEAL (NON-ILLUSTRATED)
22TUBE, DRAIN
23SPOUT DRAIN TUBE
24PIN PUSH SPOUT (2)
25CHANNEL, SHELF (2)
25A5304455852 Frigidaire Refrigerator Screw
26ASCREW (3) (NON-ILLUSTRATED)
26WCI G189341
275304509705 Frigidaire Refrigerator Grommet
27A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
28BOLT ROLLER (2)
30ROLLER, REAR (2)
31WCI G490004-02
32ROLLER FRONT, ADJUSTABLE (2)
33SPRING-ROLLER (2)
34SUPPORT, ROLLER (2)
35LEG-LEVELING (2)
36NUT, ANCHOR (2)
37BOLT-ROLLER (2)
38WASHER
39WCI G166912
40SHIM, HINGE
40ATAPPING, PLATE (2)
41BRACKET-HINGE
435303001321 Frigidaire Refrigerator Lower Hinge Pin
44WCI G103903
45WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
46BRACKET, HINGE CENTER
47AWASHER (2)
47SCREW, BRACKET MOUNTING (4)
48WCI G142220
49TRIM CORNER (4), AVOCADO
50A241710601 Frigidaire Refrigerator Screw
50BRACKET, TOP HINGE
51WCI G183861
52COVER, TOP HINGE, AVOCADO
53WCI G174747-08
